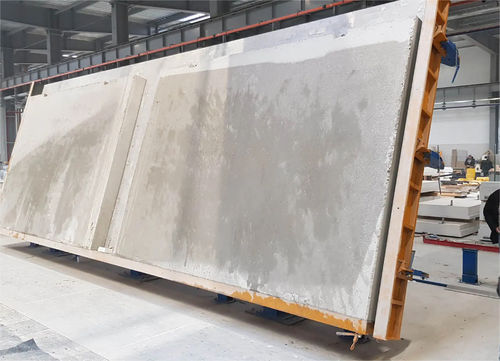

Tilting table

The tilting tables are designed to produce precast architectural panels, exposed, solid or sandwich panels. Thanks to the height-adjustable sides and internal separators, they make it possible to produce elements of various thicknesses, widths, and lengths to become an integral part of residential, commercial, and industrial structures. Structure The tilting tables are made of a casting surface steel sheet 10 mm thick, obtained from top quality coil steel. On request, the casting surface can be sanded to obtain a mirror finish. The lower edge of the tables is bolted to the supports, to facilitate the variation in height, by operating manually with the aid of the bridge crane. The tables can also include the upper and lateral sides depending on the type of panel that the customer must produce, as well as the inserts to make doors and windows. The tables with fixed sides are used to produce fixed-size panels only, if you require to produce panels of different sizes, the solution is to use magnetic-fastened sides and separators. Bianchi Casseforme offers a wide range of magnetic side systems and magnets. When the sides of the formwork are closed, there is perfect impermeability thanks to a series of gaskets along all the internal profiles.
