Drill bit grinding machine APL-13

milling cuttermanualhigh-precision

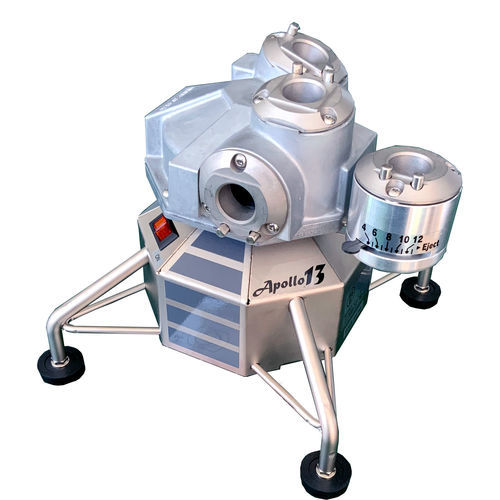

APOLLO 13 is an ENDMILL GRINDING MACHINE which is possible to grind φ4.０～φ13.0. They have been sold in many foreign countries and both 100V and 220V - 230V is capable. Specification *Applicable diameters : φ4.０～φ13.0 (4 Flutes : φ6.0 ~) - *Power Supply: AC100V, 220-230V 50/60Hz *Shank Diameters: φ4、6、8、10、12 - *Rotation Speed: 7,200rpm *Flutes: 4 Flutes, 2 Flutes - *Motor Output: 100W *Applicable Drill Length: As per our catalog - *Overall Dimensions: W220×D220×H200 Tip ~ Shank length: as per our catalog - *Net: 4.8kg *Bottom Flute Shape: as per our catalog - *Accessories: Holder Pipe x 5 pcs Holder Ring for 4 flutes Holder Ring for 2 flutes Holder Case, Hex Wrench x 2 pcs, Brush, Power Code *Axial angles: Secondly Clearance Angle 6°, 3rd Clearance Angle 20°, Gash Angle 35° *Grinding Wheel: CBN #170 (Sold separately Diamond Grinding Wheel DIA #270
