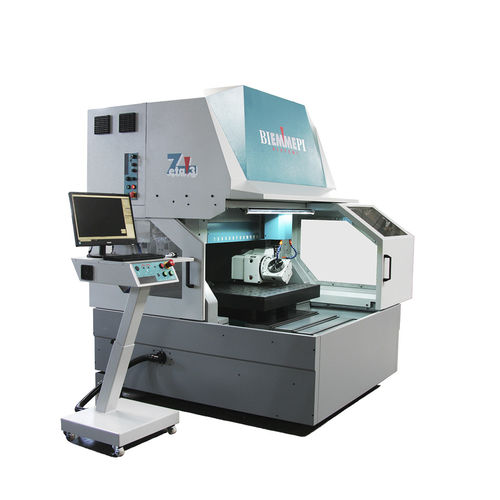

3-axis CNC milling machine ZETA series
5-axishorizontalhigh-speed

3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis, 5-axis
Spindle orientation
horizontal
Other characteristics
high-speed, rigid, high-precision
X travel

875 mm
(34 in)

Y travel

667 mm
(26 in)

Z travel

350 mm
(14 in)

Rotational speed

36,000 rpm
(226,195 rad.min-1)

Power

8 kW
(10.88 hp)

Description

The brand-new ZETA CNC milling machines series has been designed using all the experience acquired with META series. The aim of the project was to improve the qualities of the META series while expanding its limits. This new ZETA machine reaches faster speed (32m/min or 55 m/min vectorial) and acceleration (9,81M/sec2 1g), and ensures higher precision and reduced maintenance. The new model is fitted with a new high speed spindle (36.000 rpms), with very low vibrations, and the capacity of the tool machine has been increased to 18 stations. This upgrade allows to carry out more complex milling operations. Another improvement regards the protection of the machine from lubricants. Now, all the components of the machine are protected from use of cooling lubricants. The carpet has been replaced by a telescopic protection for this purpose. Special attention has also been given to the handiness of machine loading and equipping: ZETA machines are provided with a redesigned sliding door system that enables a wide opening with two easy movements. In addition, the internal parts of the machine do not have any material build-up points. It is possible to install an optional tilting-rotary table, so as to upgrade the machine from 3 to 5 axes.
