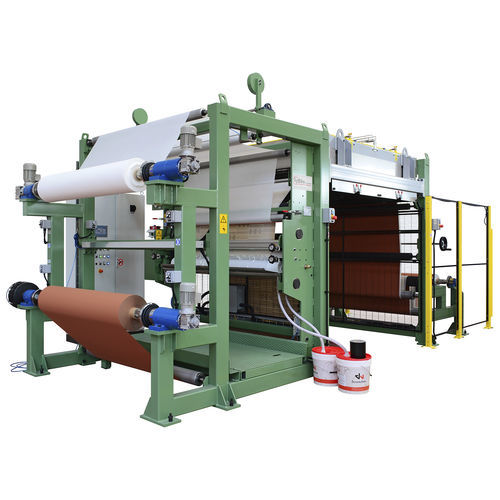

Jumbo roll laminating machine LM-VG

water-basedcoated abrasive

The LM-VG jumbo roll laminating machine is designed to laminate Velcro or PSA on coated abrasive full width web backing side. LM-VG is a high-performance machine, suitable for the continuous process of jumbo rolls. Technical Data - Maximum web width: 1,650 mm - Maximum diameter of the rolls: 1,000 mm (abrasive and velcro/PSA) - Variable speed up to 15 m/min (depending on dryer length) - Pneumatic brake on coated abrasive unwinder, manually adjustable - Web edge guide on coated abrasive unwinder - Low tension web control on velcro unwinder - Two rubber covered shaft gluer, top shaft fixed, bottom shaft vertically sliding - Bottom shaft pneumatically controlled with fine adjustment handles, one on each side - Doctor blade for fine glue quantity adjustment - Stainless steel glue basin, quickly removable - Gluer is independently motorized - Lamination system to link together velcro and coated abrasive backing - Dryer for water evaporation, gas powered, featuring air flow control for a constant and even heat transfer - Dryer length can vary based on requested machine performances - Pull station to control web tension - Rewinder up to 1,200 mm diameter jumbo, controlled by direct gearmotor - The complete system is powered by AC motors, servo type where necessary - Machine parameters are controlled by a dedicated software and available through a touch panel Options - Natural gas or LPG dryers - Joining station on unwinder side - Automatic unwinder brake pressure control - Glue pump - PSA unwinder and lamination
