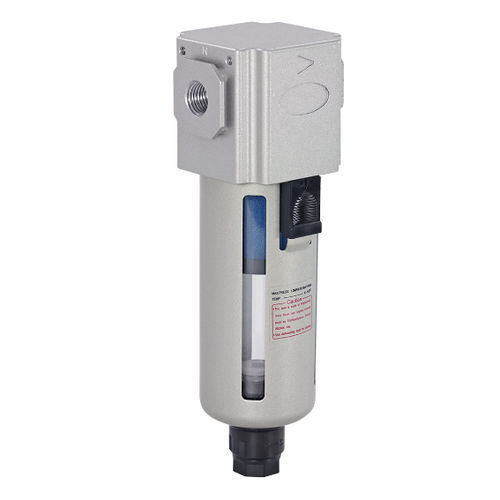

Coalescing filter MGAFB seriesoil mistliquidcartridge
Add to favorites
Compare this product
Characteristics
- Designed for
- liquid, oil mist
- Filtration element
- cartridge
- Filtration method
- coalescing
- Applications
- fine
- Material
- nylon, glass, polycarbonate
- Other characteristics
- automatic, modular, semi-automatic
- Operating pressure
Max.: 145 psi
Min.: 20 psi
- Filtration size
0.01 µm, 0.3 µm
- Fluid temperature
Max.: 158 °F
(70 °C)Min.: 23 °F
(-5 °C)
Description
MGAFB series coalescing filters protect sensitive pneumatic equipment by removing oil mist and contamination down to 0.3µm or 0.01μm. Fine fibers in the filter media collect microscopic particles and the outer filter drainage layer allows coalesced liquid to fall into the filter bowl. They can be mounted inline or connected directly to the other FRL components via available modular connector kits.
•High performance glass fiber filtering element
•1/8 NPT to 1/2 NPT port sizes
•Available with semi-auto/manual and auto bowl drains
•Metal, polycarbonate, and nylon bowls available
