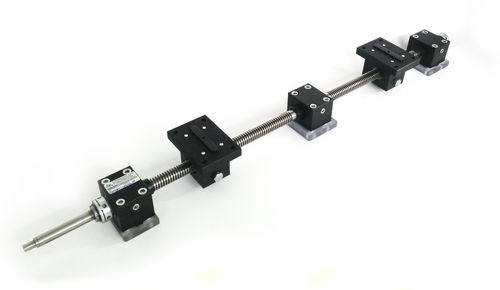

Steel linear guide Compact Steel Bidirectional - DVABC+LVZ2 R/L

compact

Group with Dx/Sx rotating trapezoidal screw and supports with reduced dimensions, (without dust cups) for manual or motorised unified bidirectional movements with mechanical or electronic position indicator. Groups C/DVABC+LVZ2...R/L are ideal for bidirectional movement with unified motion of Dx/Sx screws at a maximum distance of up to 200 times it’s diameter with the possibility of regulating axial play. Group mainly used horizontally and, if needed, also vertically/obliquely after prior risk assessment relative to the specific application. The system allows for the control of maximum nut wear, tolerable up to a 1/4 of pitch, and helps to provide an adequate protection for the machine by limiting any eventual risks due to nuts breaking. Alternatively we have Group version C/DVABC+LV2...R/L that can be used for horizontal Dx/Sx movement only, without axial play adjustment, and offering a smaller footprint and greater economy. Supports for screws from TR 20 to TR 60.
