Magnetic gripper 275

magnetic gripper
magnetic gripper
Add to favorites
Compare this product


pneumatically-actuated, electric, mechanical
for handling systems, for lifting applications
magnetic, internal, high-efficiency, flexible

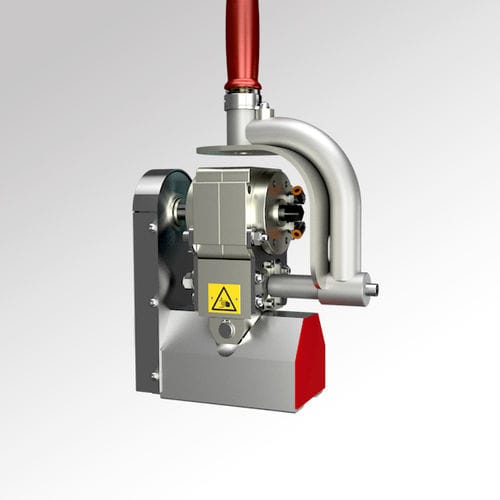

A flexible end effector that, when integrated in Quick-Lift System™, meets the highest standards of ergonomics, working environment, safety and efficiency. Unique integrated mechanical, electrical, pneumatic swivel enables continuous rotation of the end effector. Easy to use, thanks to outstanding responsiveness, regardless of load weight. Exceptional safety is achieved using our intelligent control systems. High cost efficiency through high reliability and long durability. A strong solution for quick and easy handling Lifting capacity Maximum lifting capacity varies depending on the shape of the object to be lifted. Note: The lifting capacity is reduced when the center of gravity of the object to be lifted is eccentric. Steel plate Thickness 25 mm 300 kg Thickness 20 mm 270 kg Thickness 15 mm 210 kg Thickness 10 mm 150 kg Note that magnetism under the steel plates <25 mm can occur. Round steel Ø 60-250 mm, Maximum length 1500 mm Maximum weight 135 kg Temperature Maximum temperature of lifting object 50° C. End Effecto's weight 21 kg / 46 lbs Air supply Clean dry air, filtered, pressure 6.0 -8.0 bar is required Safety For each lifting manovering, the control unit performs 3 internal security tests before the load can be lifted or handled. Are a quick and easy process, which do not disturb the operator's productivity Other The tiltable magnetic gripper is operated with the lower buttons on the handle. Handle with 5/2 pneumatic valve and swivel included. No arm or rail system is included. Options Quick-coupling, Quick-coupling pin and flange to connect end effector with Quick-Lift control unit. For more options see document: Options
