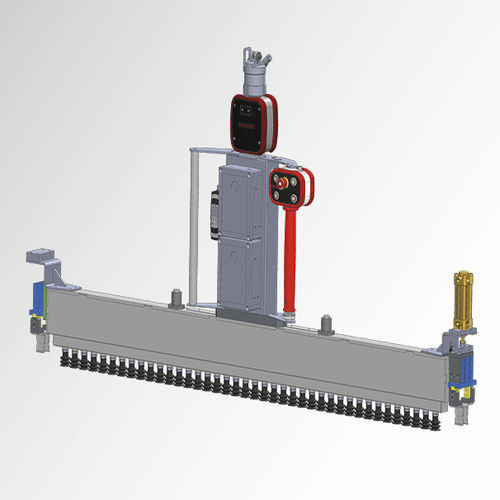

Glass plate lifting beam Ergo Glass Profile

pneumatic

The Ergo Glass™ end effector that, when integrated in Quick-Lift System™, meets the highest standards of ergonomics, working environment, safety and efficiency. Easy to use, thanks to outstanding responsiveness, regardless of load weight. High cost efficiency through built in energy save function, high reliability and long durability. The sensitive manoeuvre handle provides the operator a precise and controlled movement of the glass panel. Developed to handle parts for the window frame during manufacturing. Designed with a combination of pneumatic grip and vacuum. Function is quickly altered by pushing a button. Modular design of the vacuum suction interface creates unlimited possibilities for customized solutions. Maximum security due to a combination of sound and visual alarms activated in case of pressure drop or lack of vacuum. With integrated “anti-drop” and energy saving as standard this end effector provides a first class solution. Lifting Capacity Profiles : 30/60 kg depending on configuration of the suction cups. End effectors' weight End effector weight somewhere between 30-80 kg, depending on end effector’s size and lifting capacity. Main functions Equipped with fixed suction cups. The control handle provides a logic and simple interface for the operator for up and down movement as well push buttons for grip and release of the glass panels. The control box at the top provides setting of adjustable speed depending of the application. Both grip or suction function to maximize lifting options of profiles. Air Supply Clean dry air, pressure 6-8 bar.
