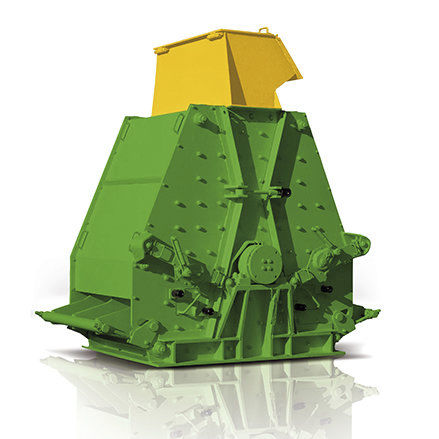

Impact crusher R-T-MV series
stationarysecondary

impact crusher
impact crusher
Add to favorites
Compare this product


Characteristics

Technology
impact
Mobility
stationary
Other characteristics
secondary
Capacity

Max.: 250 t/h
(153.1 lb/s)

Min.: 30 t/h
(18.4 lb/s)

Motor power

Max.: 315 kW
(428.28 hp)

Min.: 75 kW
(101.97 hp)

Weight

Max.: 19,000 kg
(41,887.83 lb)

Min.: 7,000 kg
(15,432.36 lb)

Description

The crusher for any task - from coarse rock dust to sand Task Impact crushers comminute the most different kinds of rock into cubic form, while the proportion of fines is kept as low as possible. Solution The COMEC range includes three impact crusher versions: Version R – for a feeding grain size up to 150 mm (in a closed circuit with preliminary scalping at 25 mm). Series R are fitted with a rotor with 4 beater blades. Version T – for a feeding grain size up to 100 mm (in a closed circuit with preliminary scalping at 10 mm). Series R are fitted with a rotor with 3/4 beater blades. Version MV – for a feeding grain size up to 50 mm (in a closed circuit with preliminary scalping at 5 mm). Series R are fitted with a rotor with 2/3 beater blades. Benefit COMEC impact crushers enable optimum grain form and a low level of fines in the most various applications. Hydraulic systems allow easy access for both maintenance and servicing. Due to reversible rotation, the beater blades have a considerably higher service life.
