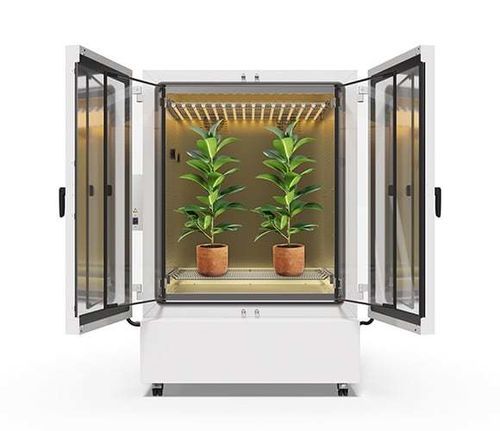

Plant growth chamber KBF PRO

on casters

A plant growth chamber is a closed climate chamber that allows for the creation of defined light, temperature, and humidity conditions. A specific CO2 concentration can also be useful or necessary. Unlike phytotrons or greenhouses, these chambers allow for isolated experiments under precisely defined and reproducible conditions. The KBF and KBF PRO series climate chambers with temperature and humidity control, as well as the KB PRO series cooled incubators, form the basis of BINDER plant growth chambers. These devices are equipped with LED plant light modules that can be retrofitted. The control unit is mounted externally, and the LED strips are fixed inside and can be moved. Application Areas: - Agronomy, agrobiology - Horticulture, arboriculture, viticulture, floriculture - Genetic modification of plants - Phytobiology, photobiology - Plant genetics and physiology - Plant protection, phytopharmacy - Entomology Selection Criteria: - Humidity Control: KBF and KBF PRO chambers allow temperature regulation from 10°C to 50°C, and relative humidity from 10% to 50% (KBF) or 10% to 90% (KBF PRO). - CO2 Regulation: The BINDER LED plant light module is equipped with a pump with adjustable flow to maintain CO2 concentration. A CO2 injection module allows regulation from 0.05% to 1.0%. - Light Quality: Three independently adjustable LED color channels (cool white, warm white, deep red). The combination of channels allows simulation of different light conditions, including sunlight and autumn conditions. - LED Module Mounting: The control unit is mounted on the left side of the chamber, LED strips clip under standard grids without tools. The position of the strips is adjustable. LED Lighting System for Plants: - 16 individually positionable LED strips - Three LED color channels: warm white, cool white, deep red - Intuitive control, real-time dimming and programming - Dimming and fresh air function - Maximum radiation intensity (PAR) equivalent to sunlight Example Configurations: Various configurations possible for large plants, small plants, seedlings, and tissue cultures. Delivery Content: - 16 strips with retaining clips - Light control unit with program controller, power supply, and fresh air pump - Retaining rails and screws for attaching the control unit - Silicone foam plugs for cable passage sealing - Cabling Control Device Functions: - Three color channels variable from 10% to 100% - Real-time programming - Dimming function - Ventilation function Recommended Accessories: - Grid shelf sets for mounting LED strips - Sample temperature control sensor (optional) - CO2 injection module from 0.05% to 1% vol The LED lighting system can be combined with climate chambers of the KBF, KBF PRO, and KB PRO series in sizes 260, 470, 720, 1060, and 1600 liters. Available Models: - KB PRO Series: With LED plant light module, sizes 260, 470, 720, 1060, and 1600 liters, temperature regulation from 0°C to +50°C, without humidity control - KBF Series: With LED plant light module, sizes 260, 470, 720, 1060, and 1600 liters, temperature regulation from 10°C to 50°C and humidity from 10% RH to 50% RH - KBF PRO Series: With LED plant light module, sizes 260, 470, 720, 1060, and 1600 liters, temperature regulation from 10°C to 50°C and humidity from 10% RH to 90% RH Technical Specifications: - Closed climate chamber with precise control of temperature, humidity, and light - LED plant light modules with three color channels - Temperature regulation: 0°C to +50°C (KB PRO), 10°C to 50°C (KBF, KBF PRO) - Humidity regulation: 10% to 50% RH (KBF), 10% to 90% RH (KBF PRO) - CO2 regulation possible with injection module - Available sizes: 260, 470, 720, 1060, 1600 liters - Easy mounting of LED modules and accessories
