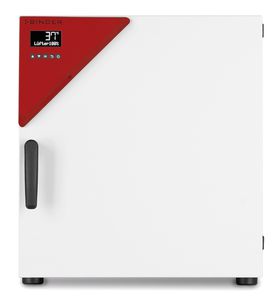

CO2 incubator KB PRO 470

laboratorymultifunctionalforced convection

Product description
The KB PRO 470 is a high-performance cooling incubator with a wide temperature range and extensive programming capabilities. Designed for laboratory and industrial temperature applications, it supports incubation, ICH photostability testing (with optional light modules) and plant growth chambers (with LED modules and optional CO₂ gassing).

Benefits

• Precise temperature control across a broad range for diverse applications
• Reliable long-term operation using proven compressor technology and stainless-steel inner chamber
• Intuitive operation: signal triangle with illuminated status, ergonomic touchscreen controller, telescopic rack rails
• Energy-efficient performance through modern inverter cooling technology

Important characteristics

• Temperature range: -20 °C to +100 °C
• APT.line™ preheating chamber technology
• Energy-efficient inverter cooling unit; climate-neutral R-290 refrigerant
• Door heating to prevent condensation; adjustable fan speed
• HIT sandwich housing; stainless-steel inner chamber; inner doors of metal-oxide-coated safety glass
• Two stainless-steel racks with telescopic rails (standard 2; max. 16)
• 80 × 45 mm access port with silicone plug; floor-standing with robust twin casters (front brakes)
• Intuitive touchscreen controller with time-segment and real-time programming; internal data logger with USB export
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms; unit self-test
• Data interfaces: Ethernet, USB; APT-COM™ software (optional)
• Optional ICH light modules (VIS / UVA / LQC), LED plant light modules, CO₂ gassing modules (0–1% and 0–20%)

Performance & electrical highlights (excerpt)
Article Number: 9020-0435
Designation: KBPRO470-230V
Option model: Standard
Temperature range: -20...100 °C
Temperature uniformity at 37 °C: 0.2 ± K
Temperature fluctuation at 37 °C: 0.1 ± K
Max. heat compensation at 37 °C: 800 W
Recovery time after 30 s door opening at 37 °C: 4 min
Rated voltage: 208...240 V
Power frequency: 50/60 Hz
Nominal power: 1.5 kW
Unit fuse: 16.0 A
Phase: 1~

Dimensions, volumes & loads (excerpt)
Interior volume: 472 L
Net weight (empty): 233 kg
Load per rack: 40 kg
Permitted total load: 200 kg
Wall clearance back: 100 mm
Wall clearance sidewise: 180 mm
Housing width (net): 930 mm
Height (net): 1,951 mm
Depth (net): 900 mm
Interior width: 656 mm
Interior height: 1,250 mm
Interior depth: 575 mm
Inner doors: 1
Unit doors: 1
Number of shelves (std./max.): 2/16

Environment-specific data (excerpt)
Sound-pressure level at 25 °C: 50 dB(A)
Energy consumption at 25 °C: 200 Wh/h
Energy consumption at 37 °C: 205 Wh/h

Technical specifications

• Model: KB PRO 470
• Article Number: 9020-0435
• Designation (internal): KBPRO470-230V
• Temperature range: -20 °C to +100 °C
• Temperature uniformity (37 °C): 0.2 ± K
• Temperature fluctuation (37 °C): 0.1 ± K
• Max. heat compensation (37 °C): 800 W
• Rated voltage: 208...240 V, 50/60 Hz; nominal power: 1.5 kW; fuse: 16 A; single phase
• Interior volume: 472 L; net weight (empty): 233 kg; permitted load: 200 kg
• Exterior dimensions (W×H×D): 930 × 1,951 × 900 mm (net)
• Interior dimensions (W×H×D): 656 × 1,250 × 575 mm
• Interfaces: Ethernet, USB; internal data logger with open-format export via USB
• Safety: Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Optional: ICH light modules (VIS / UVA / LQC), LED plant light modules, CO₂ gassing modules, door lock, interior lighting, analog/alarm outputs, APT-COM™ software editions
