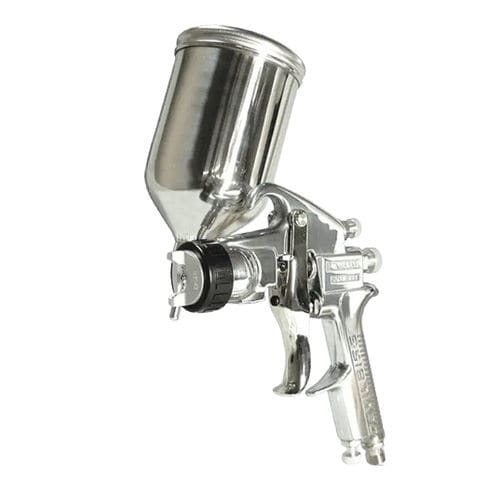

Spray gun JGX-502

paintmanualsuction

JGX-502 Spray Gun This is an improved model of the JGX-501 A popular model designed for the Japanese market based on DeVilbiss spray technology. Overview The JGX-502 air cap is retained onto the spray gun by a retaining ring that screws to threads on the baffle. The retaining ring is made from lightweight and very durable POM. This feature provides a longer gun life cycle and in the event of thread damage, only the replacement of the baffle is required. Features Lightweight, Compactness and High Performance Outstanding atomization is achieved with the JGX-502 spray gun although it weighs only 430g (Gravity Feed), or 440g (Suction Feed). The JGX-502 provides a quality finish with both metallic and the Pearl Mica paints. Soft-seat Tips Prevent Fluid Leakage A special UHMW polyethylene seat built into the stainless steel fluid tip prevents fluid from leaking past the tip, and extends usable life of the fluid tip and needle Stainless Steel Fluid Passage All fluid passages in the JGX-502 spray gun are made from stainless steel, making it suitable for all types of materials. Unique Air Cop Design Perfect alignment between the air cap and the fluid tip is maintained through DEVILBISS’ patented Ball & Cone principle, and therefore it provides excellent atomization as well as consistent and uniform spray patterns. Highly Durable Needle Packing A new two-piece combination needle packing of patented design provides surprisingly long packing life. Also, less frequent packing adjustment is required. Air Adjustment Valve on Handle The air adjustment valve positioned at the air inlet on the gun handle allows the operator easy air adjustment.
