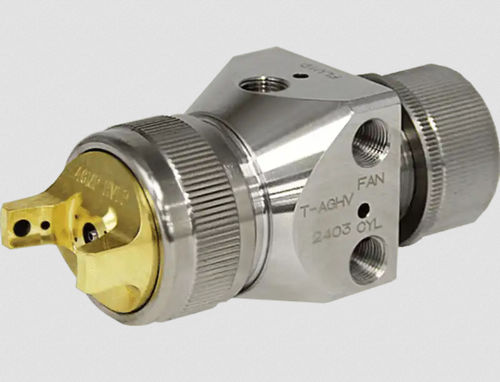

Spray gun T-AGHV HVLP

airpaintautomatic

The T-AGHV is the HVLP version of the T-AGB compact automatic gun. Use Method The T-AGHV gun does not have an air valve mechanism inside the gun, so it can be used as an air bleeder type or please pay attention to on/off timing of air and fluid. Features Adequate atomization can be achieved even at pressure of 0.7 kg/cm² within air cap, there is little bouncing back. Transfer efficiency is achieved 65% or more and paint loss is reduced dramatically. Because this gun has been developed with the same dimensions as the T-AGB compact automatic gun, the benefits of HVLP can be obtained without changing your current mounting jigs, or without changing your teaching methods in the case of robots. You can use the factory air your currently using, because a gun inner step down type HVLP method is used. The gun body, Fluid tip, and needle are made of stainless steel and the body has been provided with a gold plating. This gun can be used in a large range of painting application. plated, so it can be used in a wide range of painting applications.
