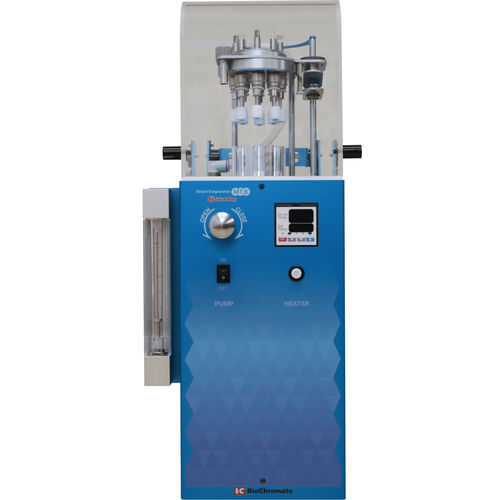

Vacuum evaporator MT8

centrifugallaboratoryfor liquids

8-channel Evaporator for microtubes- Smart Evaporator™ • Water evaporation time reduced to 1/5 in comparison with nitrogen evaporators, and centrifugal evaporators • The model specially for microtube use in biochemistry and life science Faster evaporation with microtubes using Spiral Plug™ E-series - VVC(Vacuum vortext concentration) method prevents bumping. - Cylindrical shape to fit with microtube aperture. - 3 helix slits reduce instance of sample escaping. Comparison of evaporation time: Spiral Plug against conventional methods Test methods:0.1ml of water prepared in a 1.5mL microtube was evaporated to dryness, under room temperature. The remaining water amount was measured intermittently by its weight. • BioChromato Spiral Plug E1 with dry air, flow rate per a tube at 5L/min, n=8 • Company A's Nitrogen Evaporator with dry nitrogen, flow rate per a tube at 0.3L/min, n=6 • Comopany B's Centrifugal Evaporator Vacuumed to -0.1MPa gauge n=8 Main Unit Specifications • Heater shape & size : Round shape φ 68.5 • Gas Purge : OK • Heater temperature range : Room temperature to 60 ℃ • Size of container : 1.5/5.0mL microtube (designed using Eppendorf products as standard) • Color : 1 color (Aqua) • Size (mm) : W188 (252) mm x D255 (304) mm x H585 mm • Weight : 11.3 kg (excluding attachments) • Pump : Contained within main unit • Flow : Max. 60 L/min. • Power Source : Single phase 100 V
