Pressure blast cabinet manual

pressure blast cabinet
pressure blast cabinet
Add to favorites
Compare this product
indicative price


Operational mode

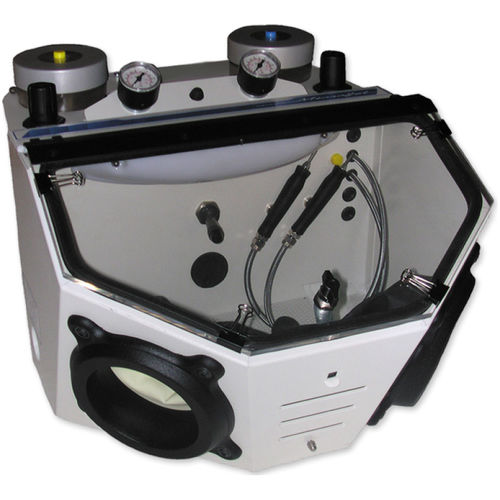

The Microstar Jet Micro sandblasting familiy offers precision, robustness, flexibility and comfort of use. It is offered here in the following version: Microstar Jet 2 : Delivered with 2 sand reservoirs and 2 carbide nozzles Ø 0.8 and 1,2 mm. Our MICROSTAR JET2 offers following characteristics: Integrated lighting Sekurit panoramic window 2 handpieces with ergonomic rubber grip. Dust proof hand passage Adjustable ventilation The switch between the sand tanks is done inside the cabin via a throtle. The sand blasting is controlled via a foot pedal for ease of use and precision work. TECHNICAL DATA Work pressure 3to6 bars adjustable Nozzle Ø 0.8 & 1.2mm Electrical 220VA-50 Hz Fuse 6.3A Weight 8-11 kgs Reservoir 2 liters Air consumption 100l/min at 6 bars Dimensions (LxHxD) 380x280x570mm Dimensions Cabin (LxHxD) 375x200x200mm Vacuum a Ø 32mm exit is included for vacuum connection
