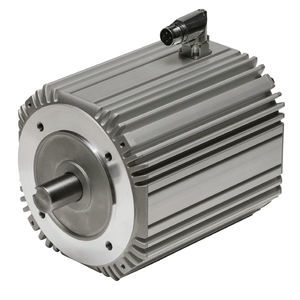

Permanent magnet motor NEMA 56C Series

synchronousAC460 V

3/4 & 1 HP · NEMA 56C Mounting Flange · 26.5 - 40 in-lbs Bison VFsync PMAC motors are the perfect solution for applications that require precise speed control Designed with high-tech automated machines in mind, Bison's VFsync PMAC motors deliver the velocity control that engineers have previously only found in much more expensive servo motors. 63% Lighter & 56% Smaller than comparable 3-phase induction motors providing greater mounting versatility within thigh footprints. Unleashing the Power of Permanent Magnets - Sinusoidal waveform style motor optimized to run on network driven variable frequency drives. - Robust sintered neodymium-iron-boron magnets fit securely in lamination pockets. - Internal permanent magnet style rotor built with electrical grade lamination steel. Rugged Construction and Convenient Features - Robust motor shaft with axial captured ball bearings and O-ring sealed enclosure. - Heavy duty inverter duty wire for reliable performance. - M17 power and feedback swivel connectors included on all motors for easy setup. - Quick connect cables available to link your motor and VFD. Bison VFsync PMAC motors require a variable frequency drive that is designed to run permanent magnet synchronous 230/460 volt three phase AC motors Each motor includes pre-determined parameters for easy programming on a compatible drive.
