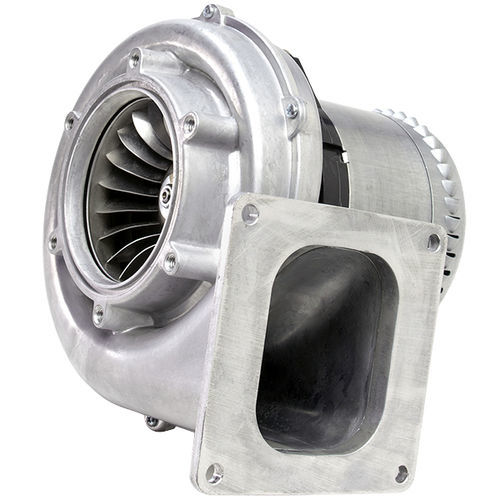

Combustion blower Nautilair® 8.9"aircentrifugalsingle-stage
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- air
- Technology
- centrifugal
- Number of stages
- single-stage
- Applications
- for food applications, boiler, combustion
- Voltage / frequency
- 24 Vdc, 100-240 V, 120 VAC, 240 VAC
- Norms
- UL, CSA, REACH compliance, RoHS
- Other characteristics
- compact, brushless DC
- Flow
550 ft³/min
(15.574 m³/min)- Operating pressure
37 mbar
(0.537 psi)
Description
Reach pressures up to 15" of H2O and flow rates up to 550 CFM. These blowers support air power up to 2.25M BTUs per hour. Standard and high output versions are available with customization options to fit your specifications.
Power Density
Industry-leading design enables the highest output from the smallest blower size.
Long Life
Brushless design eliminates brush failure and extends life up to 25,000 hours – virtually maintenance-free.
Variable Speed
Completely programable for various speed profiles and several different speed signals (0–10VDC, PWM, 4–20mA, and mechanical).
Compact Design
Lightweight, space-saving design facilitates easy installation of the blower into the boiler or other equipment.
Markets & Applications
Boiler & Hot Water Heater Blowers
Cooling High-Temp Applications Blowers
Food Service Equipment Blowers
Fume Evacuation System Blowers
Radon Mitigation System Blowers
