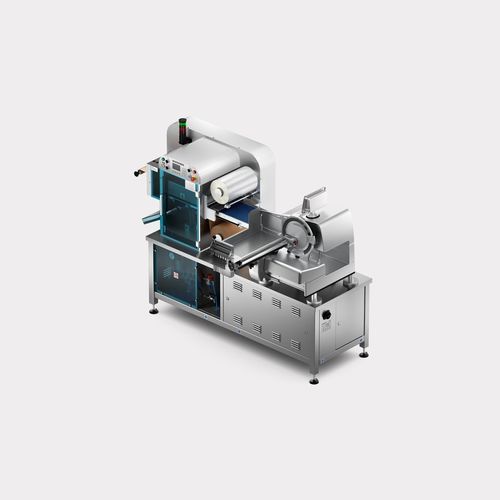

Automatic packaging machine LINE PACK VB PLUS

filmvacuummeat

Overview
The Bizerba LINE PACK VB PLUS thermo-sealing machine is the optimal solution for slicing and packaging cold cuts and cheeses. The automatic thermo-sealing machine is designed to extend the shelf life of sliced products by packaging them in a protective atmosphere or vacuum, ensuring freshness while preserving a 'handcrafted' packaging appearance. Built with the latest technological innovations, this machine minimizes maintenance needs and simplifies operation, making it an ideal solution for efficient and reliable packaging processes.

Highlights

• Reduced product handling
• Optimization of packaging time and costs
• Improved personnel organization
• Overcoming stock shortages of sliced product bags
• Increased profit margins
• Rapid return on investment

Areas of use

• Supermarkets
• Hypermarkets
• Meat and deli processing labs
• Small sausage factories

Details & Options
Slicing-Packaging Combination with VSI F T Slicer and Roll-Film Packaging Machine
Combination of VSI F T slicer and roll-film packaging machine for integrated automatic slicing and packaging.

Flexible Portion Placement:
Thanks to the vector-oriented depositing technology of the VSI slicer, portions can be flexibly prepared for the automatic packaging process in single-row, multi-row, longitudinal, and cross-oriented configurations. Circular placement and multi-layered portions are program-controlled for precise slicing.

Intuitive Operation:
Fully configurable, icon-based controls and real-image display in the article memory enable ease of use without extensive training. When combined with the Line Pack VB Plus packaging solution, the automation solution for fresh packaging becomes more affordable and easy to implement.

Cleaning:
Removable product-contacting parts and slicer design for wet cleaning support high hygiene standards and help extend shelf life of packaged products.

Options

• Product-contacting parts made of stainless steel or food-grade plastics
• Various packaging formats with an easy-peel function
• Trend control of the slicer for defined portion weights
• Integration with automatic price labeling systems

Technical data / specifications

• Voltage variants: 400 V / 50 Hz
• Protection class: IP20
• Interfaces: Ethernet (TCP/IP); I/O Signals
• Temperature range: +32 °F to +104 °F / 0 °C to +40 °C
• Installation type: freestanding
• Ambient air humidity: 20-90% non-condensing
• Dimensions (L x W x H) / (D x W x H): 2315 x 1296 (1495) x 1690 mm
• Product dimensions range (L x W x H): max 282 x 252 mm; min 240 x 170 mm
• Weight: 420 kg (including slicer, unpacked); 600 kg (packed)
• Supply medium: Mains connection
• Material: Plastic; anodized aluminum; stainless steel
• Installation area (L x W): 1888 x 645 mm
• Approval information: CE
• Power consumption: 9 kW
