Switch between two or four HDMI sources to a single high-definition display.
Supports up to 4K/30 resolution (UHD 3840 x 2160).
Mandatory 3D-video, HDCP compliant, and Blu-ray ready.
Smart auto switching function that enables device to automatically switch to a source when it becomes active.
Switch between two or four different HDMI sources to a single display.
Advanced EDID functionality ensures accurate output display.
Control via front panel push buttons, IR remote control, serial connection.

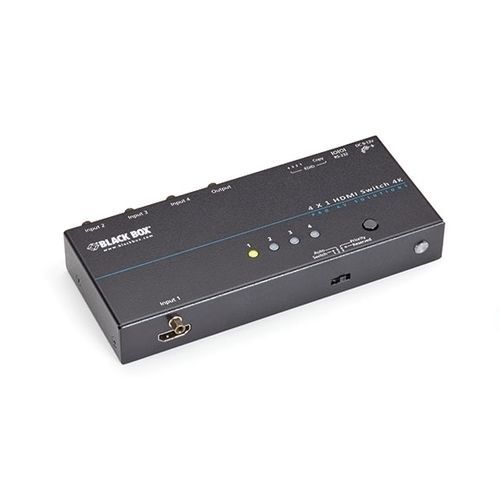

The HDMI 4K Switch enables switching between two or four HDMI sources to a single display. The switch supports resolutions up to 4K (UHD) and has a smart auto switching function that enables the device to automatically switch to a source when it becomes active. Advanced EDID functionality enables the switch to either read or copy EDID automatically from screens, or audio/video EDID information can be copied manually.
Approvals — CE, RoHS2, FCC, CSA, TUV, UL
Connectors —
Input: (2) or (4) HDMI female
Output: (1) HDMI female
Control Port: (1) RS-232
Environmental —
Operating Temperature: 0 to 40°C (32 to 104°F)
Storage Temperature: -20 to 60°C (-4 to 140°F)
Altitude: 10,000 ft.
Humidity: 80%
Indicators — (4) LEDs for input status
Material — Steel
MTBP — 50,000 hours
Power — Desktop-type power supply;
Input: 100-240 VAC, 50-60 Hz, 45 VA, Input Connector: IEC320 C14
Output: 9 VDC, 1.5 Amp over a 2.5-mm barrel plug (center positive)
Resolution— Up to 4K x 2K@30Hz(3840 x 2160)
User Controls —
(1) switch button
(1) EDID copy button
(1) EDID switch for EDID selection
(1) EGO setting switch for auto functions
