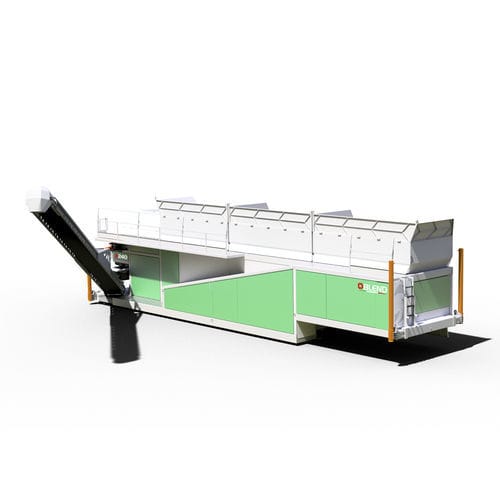

Mobile concrete mixing plant A240

compactautomaticcontinuous

The Blend A240 is the versatile plant par excellence with high production capacity, ease of transport from one work site to another and with no additional mounting operations required. The plant has total hydraulic and electrical autonomy. Each type of aggregate is transferred from the hoppers to the main conveyor belt, to the twin shaft mixer, by means of variable speed extractor belts. Aggregate Dosing is by negative weighing. Dosing of cement and additives is also by negative weighing, to give greater accuracy and reliability and dosing of water, emulsion and other additives is electronically controlled by electronic flow meters connected the onboard PLC. GPS and remote control systems allow you to have complete management information regarding production and stock levels at all times. The A240 plant can be easily transported: weights and dimensions allow it to fit in on conventional transport vehicles (No exceptional transport required). Self-loading, no crane is needed. The positioning is quick: it can be done in an hour and it does not require special installations or concrete foundations. The design offers 2, 3 or 4 hoppers to satisfy different needs: from the quantity of storage to the type of aggregates. The loading of materials requires neither ramps nor civil works. The material is loaded onto a tipper truck or a truck mixer by means of a height-adjustable conveyor belt. Automated production. Aggregates / cement weighing and consumption reading. Remote control from the client’s head office and by Blend technicians, to guarantee immediate assistance.
