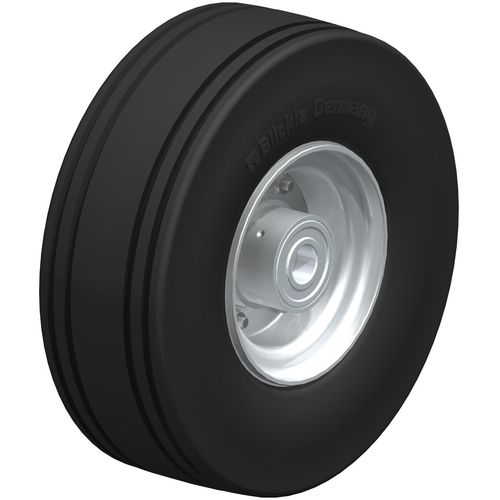

Wheel with solid tire VLE series
rubberfor heavy loadslow-noise

wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
Add to favorites
Compare this product


Characteristics

Type
with solid tire
Hub material
rubber
Applications
for heavy loads
Other characteristics
low-noise, elastic
Load capacity

Min.: 400 kg
(882 lb)

Max.: 1,885 kg
(4,156 lb)

Diameter

250 mm, 306 mm, 405 mm, 455 mm, 525 mm
(9.84 in, 12.05 in, 15.94 in, 17.91 in, 20.67 in)

Tread width

Min.: 85 mm
(3.35 in)

Max.: 140 mm
(5.51 in)

Description

In the VLE series, tyres made from super-elastic solid rubber are bolted together with pressed steel rim sections. The super-elastic solid rubber tyre has a hardness of 70 Shore A and consists of two or three different components, depending on the wheel diameter. The tough rubber compound used for the rubber core makes sure that the tyre remains stable on the rim, even under heavy loads. The highly elastic damping ring keeps the temperature of the tyre low at high speeds, while the abrasion-resistant tread protects the tyre against external damage and ensures that it remains in service for a long time. The tyres are available with a ribbed or zig-zag profile. The VLE series is puncture-proof, maintenance-free and available as a hub fitting wheel VLEA series.
