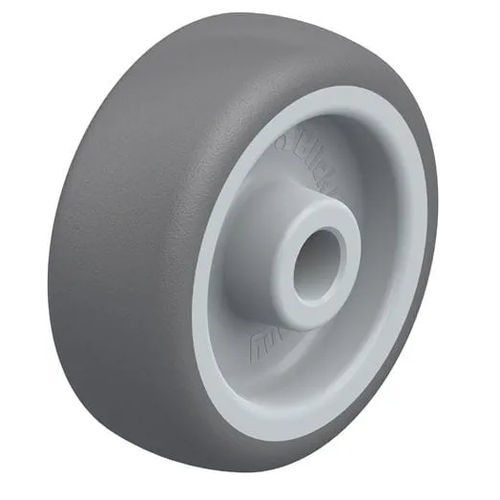

Wheel with solid tire PATH series
thermoplasticballbearing

wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
Add to favorites
Compare this product


Characteristics

Type
with solid tire
Hub material
thermoplastic
Hub type
ball
Applications
bearing
Other characteristics
non-marking, low-noise, conductive
Load capacity

Max.: 250 kg
(551 lb)

Min.: 75 kg
(165 lb)

Diameter

Max.: 125 mm
(4.92 in)

Min.: 50 mm
(1.97 in)

Hub length

Max.: 36 mm
(1.42 in)

Min.: 22 mm
(0.87 in)

Tread width

Max.: 32 mm
(1.26 in)

Min.: 19 mm
(0.75 in)

Description

The tread of the PATH series is made of high-quality thermoplastic polyurethane with a hardness of 94 Shore A. This is cast onto the high-quality nylon 6 wheel centre and forms a strong chemical bond. It is also non-marking and non-staining. The PATH series is characterised by very low rolling and swivel resistance. The PATH series is used for tool trolleys, dollies and hygiene applications in the food industry and elsewhere. The wheels in the PATH series are available in sizes 50 to 125 mm as standard. Blickle provides ball bearing and plain bore versions. The wheels are also available in an electrically conductive version or with ball bearing seals.
