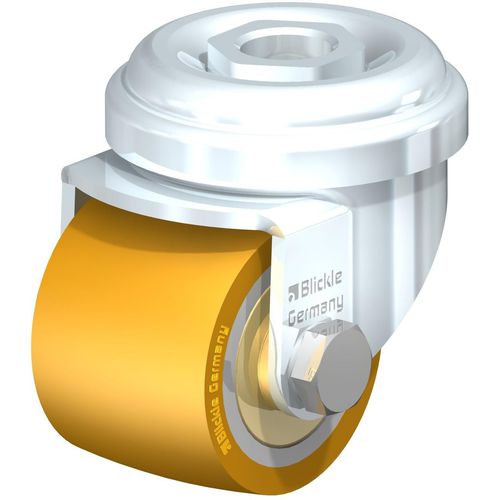

Swivel caster VSTH series
rodcentral hole fixingnon-marking

swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
Add to favorites
Compare this product


Characteristics

Type
swivel
Mount
rod
Other characteristics
central hole fixing, non-marking, low-noise, furniture, steel, pressed steel, polyurethane
Load capacity

100 kg, 150 kg
(220 lb, 331 lb)

Wheel diameter

Min.: 35 mm
(1.378 in)

Max.: 50 mm
(1.969 in)

Tread width

Min.: 27 mm
(1.06 in)

Max.: 33 mm
(1.3 in)

Description

The tread of the VSTH series consists of the high-quality, reaction-injected polyurethane Blickle Extrathane®. This is cast onto the steel wheel centre. It is non-marking, non-staining and has a hardness of 92 Shore A. This gives the VSTH series a very low level of rolling and swivel resistance. The VSTH series is mainly used for applications where a low mounting height is required, e.g. server racks oder furniture. As standard, the VSTH series is available with the following bracket series with top plate fitting: LPA/LKPA series: Light duty swivel bracket with top plate fitting A detailed description of the bracket series is available in our guide. The brake systems available for each base product are listed after you make your selection.
