- Swivel caster
- Blickle Räder+Rollen GmbH u. Co. KG

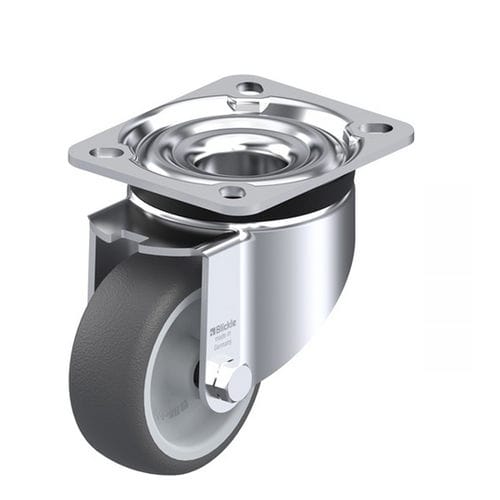

Swivel caster LK-PATH seriesbase platewith ball bearinglow-noise
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- with ball bearing, low-noise, steel, pressed steel, polyurethane, polyamide, nylon, thermoplastic
- Load capacity
Min.: 150 kg
(331 lb)Max.: 500 kg
(1,102 lb)- Wheel diameter
Min.: 80 mm
(3.15 in)Max.: 200 mm
(7.874 in)- Tread width
Min.: 32 mm
(1.26 in)Max.: 40 mm
(1.57 in)
Description
Wheels and castors in the PATH series consist of a high-quality thermoplastic polyurethane tread (TPU) and an impact-resistant nylon wheel centre. The tread has a hardness of 94 Shore A and is cast onto the wheel centre. It is non-marking and non-staining. The tread has a very low level of rolling and swivel resistance, while also being highly abrasion-resistant.
The PATH series is frequently used for hygiene applications. The electrically conductive version is frequently used for medical devices to protect them against electric discharge.
The POTH series is preferred for higher load capacities.
Catalogs
No catalogs are available for this product.
See all of Blickle Räder+Rollen GmbH u. Co. KG‘s catalogsExhibitions
Meet this supplier at the following exhibition(s):
Other Blickle Räder+Rollen GmbH u. Co. KG products
Wheels & castors with injection-moulded polyurethane tread
