Swivel caster LUH-GST series
rodwith ball bearinghigh load capacity

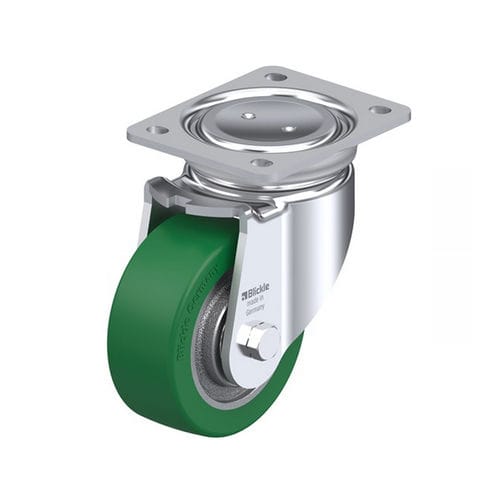

Swivel caster - LUH-GST series - Blickle Räder+Rollen GmbH u. Co. KG - rod / with ball bearing / high load capacity
Swivel caster - LUH-GST series - Blickle Räder+Rollen GmbH u. Co. KG - rod / with ball bearing / high load capacity
Swivel caster - LUH-GST series - Blickle Räder+Rollen GmbH u. Co. KG - rod / with ball bearing / high load capacity - image - 2
Swivel caster - LUH-GST series - Blickle Räder+Rollen GmbH u. Co. KG - rod / with ball bearing / high load capacity - image - 3
Swivel caster - LUH-GST series - Blickle Räder+Rollen GmbH u. Co. KG - rod / with ball bearing / high load capacity - image - 4
Swivel caster - LUH-GST series - Blickle Räder+Rollen GmbH u. Co. KG - rod / with ball bearing / high load capacity - image - 5
Swivel caster - LUH-GST series - Blickle Räder+Rollen GmbH u. Co. KG - rod / with ball bearing / high load capacity - image - 6
Swivel caster - LUH-GST series - Blickle Räder+Rollen GmbH u. Co. KG - rod / with ball bearing / high load capacity - image - 7
Add to favorites
Compare this product

Characteristics

Type
swivel
Mount
rod
Other characteristics
with ball bearing, high load capacity, non-marking, low-noise, shock absorbing, elastic, pressed steel, polyurethane, cast iron, elastomer
Load capacity

Min.: 450 kg
(992 lb)

Max.: 800 kg
(1,764 lb)

Wheel diameter

Min.: 125 mm
(4.921 in)

Max.: 200 mm
(7.874 in)

Tread width

50 mm
(1.97 in)

Description

The tread of the heavy duty wheels and castors in the GST series is made using the high-quality polyurethane-elastomer Blickle Softhane®. This is cast onto a wheel centre made of rugged grey cast iron. The extra-thick tread with a hardness of 75 Shore A provides good floor surface preservation and smooth rolling performance. The wheels of the GST series are primarily used in intralogistics when transporting heavy loads on uneven surfaces.
