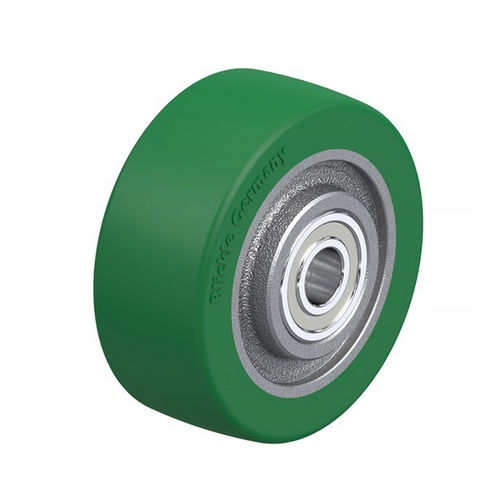

Wheel with solid tire GST series
polyurethanefor heavy loadsnon-marking

Wheel with solid tire - GST series - Blickle Räder+Rollen GmbH u. Co. KG - polyurethane / for heavy loads / non-marking
Wheel with solid tire - GST series - Blickle Räder+Rollen GmbH u. Co. KG - polyurethane / for heavy loads / non-marking
Wheel with solid tire - GST series - Blickle Räder+Rollen GmbH u. Co. KG - polyurethane / for heavy loads / non-marking - image - 2
Wheel with solid tire - GST series - Blickle Räder+Rollen GmbH u. Co. KG - polyurethane / for heavy loads / non-marking - image - 3
Wheel with solid tire - GST series - Blickle Räder+Rollen GmbH u. Co. KG - polyurethane / for heavy loads / non-marking - image - 4
Wheel with solid tire - GST series - Blickle Räder+Rollen GmbH u. Co. KG - polyurethane / for heavy loads / non-marking - image - 5
Wheel with solid tire - GST series - Blickle Räder+Rollen GmbH u. Co. KG - polyurethane / for heavy loads / non-marking - image - 6
Wheel with solid tire - GST series - Blickle Räder+Rollen GmbH u. Co. KG - polyurethane / for heavy loads / non-marking - image - 7
Wheel with solid tire - GST series - Blickle Räder+Rollen GmbH u. Co. KG - polyurethane / for heavy loads / non-marking - image - 8
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
polyurethane
Applications
for heavy loads
Other characteristics
non-marking, low-noise, elastic, shock absorbing
Load capacity

Min.: 450 kg
(992 lb)

Max.: 3,000 kg
(6,614 lb)

Diameter

Min.: 125 mm
(4.92 in)

Max.: 400 mm
(15.75 in)

Tread width

Min.: 50 mm
(1.97 in)

Max.: 100 mm
(3.94 in)

Description

The tread of the heavy duty wheels and castors in the GST series is made using the high-quality polyurethane-elastomer Blickle Softhane®. This is cast onto a wheel centre made of rugged grey cast iron. The extra-thick tread with a hardness of 75 Shore A provides good floor surface preservation and smooth rolling performance. The wheels of the GST series are primarily used in intralogistics when transporting heavy loads on uneven surfaces.
