- Fixed caster
- Blickle Räder+Rollen GmbH u. Co. KG

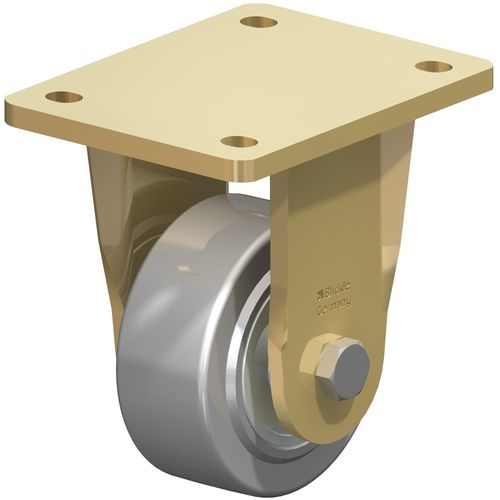

Fixed caster BS-SVS seriesbase platevery heavy-dutysteel
Add to favorites
Compare this product
Characteristics
- Type
- fixed
- Mount
- base plate
- Other characteristics
- very heavy-duty, steel
- Load capacity
Min.: 1,700 kg
(3,748 lb)Max.: 12,000 kg
(26,455 lb)- Wheel diameter
Min.: 100 mm
(3.937 in)Max.: 300 mm
(11.811 in)- Tread width
Min.: 40 mm
(1.57 in)Max.: 90 mm
(3.54 in)
Description
The extra heavy duty wheels and castors in the SVS series are made from high-quality machined rugged grey cast iron. With a hardness of 190 - 230 HB, the wheels are highly resistant to wear and provide very low rolling resistance. The wheel series provides impressively high static and dynamic load capacity.
The SVS series is frequently used for machine and systems engineering applications. Due to their high load capacity and low mounting heights, the wheels are frequently used for applications where low mounting heights are required.
