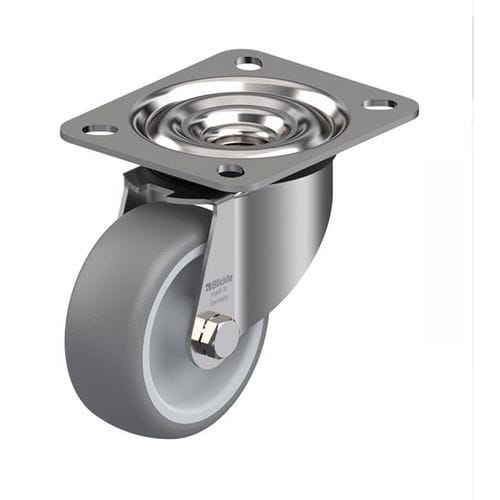

Swivel caster LEX-TPA series
base platewith ball bearingrubber

Swivel caster - LEX-TPA series - Blickle Räder+Rollen GmbH u. Co. KG - base plate / with ball bearing / rubber
Swivel caster - LEX-TPA series - Blickle Räder+Rollen GmbH u. Co. KG - base plate / with ball bearing / rubber
Swivel caster - LEX-TPA series - Blickle Räder+Rollen GmbH u. Co. KG - base plate / with ball bearing / rubber - image - 2
Swivel caster - LEX-TPA series - Blickle Räder+Rollen GmbH u. Co. KG - base plate / with ball bearing / rubber - image - 3
Swivel caster - LEX-TPA series - Blickle Räder+Rollen GmbH u. Co. KG - base plate / with ball bearing / rubber - image - 4
Swivel caster - LEX-TPA series - Blickle Räder+Rollen GmbH u. Co. KG - base plate / with ball bearing / rubber - image - 5
Swivel caster - LEX-TPA series - Blickle Räder+Rollen GmbH u. Co. KG - base plate / with ball bearing / rubber - image - 6
Add to favorites
Compare this product
Go to the Blickle Räder+Rollen GmbH u. Co. KG website for more information

Characteristics

Type
swivel
Mount
base plate
Other characteristics
with ball bearing, rubber, stainless steel, polypropylene, nylon, thermoplastic
Load capacity

Max.: 250 kg
(551 lb)

Min.: 100 kg
(220 lb)

Wheel diameter

Max.: 200 mm
(7.874 in)

Min.: 80 mm
(3.15 in)

Tread width

Max.: 40 mm
(1.57 in)

Min.: 32 mm
(1.26 in)

Description

The tread of the TPA series is made of high-quality thermoplastic rubber with a hardness of 85 Shore A. This non-marking material is cast onto the high-quality polypropylene wheel centre and forms a strong chemical bond. The TPA series is characterised by very low rolling and swivel resistance. The castors in the series are also available in an electrically conductive version. The TPA series is frequently used in the food industry or pharmaceuticals industry.
