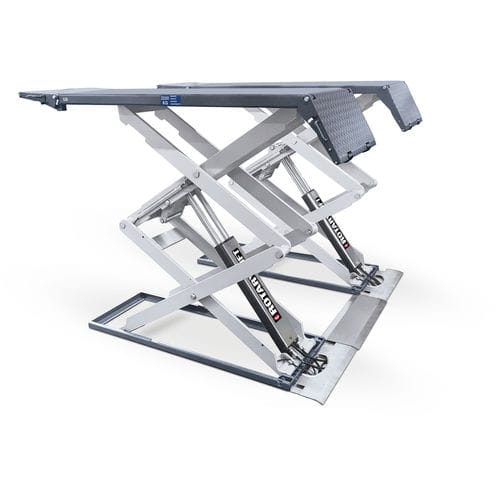

Double-scissor lift DS32
3 tonelectro-hydraulic400V

double-scissor lift
double-scissor lift
double-scissor lift
Add to favorites
Compare this product


Characteristics

Type
double-scissor
Maximum load
3 ton
Operation
electro-hydraulic
Voltage
400V
Applications
for car
Other characteristics
platform
Lifting height

Min.: 105 mm (4.134 in)

Max.: 1,945 mm (76.575 in)

Description

The low-profile double scissor lift DS32 was especially designed for the servicing area. The flexible loading platforms allow a wide loading range. Full-metal scissors Standard hot-galvanizing Fully hydraulic System Problem-free operation of the extension with level installation. A simple above-ground installation is possible as the lift provides a low clearance height. Rubber pads included in the delivery scope provide reliable protection for the vehicle underbody. The smart design allows the easiest operation of the extension, also with a vehicle above it. With a platform length of up to 2160 mm, the DS32 vehicles can accept up to VW T5/T6 with short wheelbase. The design is distinguished by its utmost stability. The scissors are made of full metal. In matters of rust protection, long life comes first - including standard wet galvanizing with additional powder coating of the platform and of the base frame. The low clearance height of the lift allows vehicles to be supported with little ground clearance. The fully hydraulic system with built-in self-venting ensures a reliable operation even in dirty environments. The pre-assembled control console has a quite hydraulic unit and thus contributes significantly to a low installation expenditure. Documents or tablet computers have their place on the integrated storage area. Also perfectly suited as a writing support. Neatly arranged and stable push buttons ensure safe operation of the lifting platform. User friendliness is the top priority here too, the side parts on all 4 sides are removable, the electrical components are located underneath the foldable control and writing panel.
