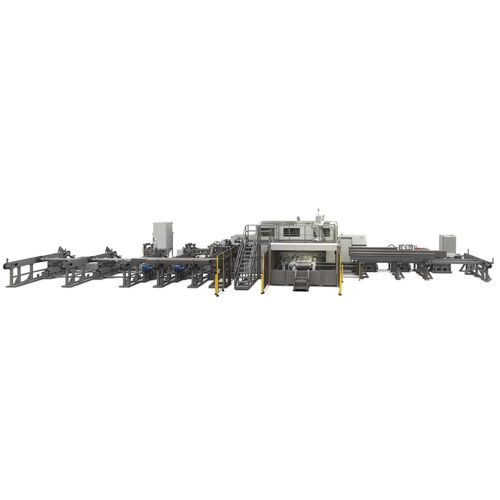

CO2 laser cutting machine LT14, LT24
3D laserfor stainless steelfor steel

CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
Add to favorites
Compare this product


Characteristics

Technology
CO2 laser, 3D laser
Material
for stainless steel, for steel, for aluminum
Product handled
tube, profile
Other characteristics
automatic, 3D
Tube diameter

355 mm, 610 mm
(14 in, 24 in)

Laser power

3,500 W

Description

LT14 / LT24 Processing large diameter pipes and structural beams 3D laser cutting equipment for large diameter pipes up to 610 mm (24”), open and special shaped structural sections (IPE) 3D Laser tube cutting machine LT14 / LT24 is the automated BLM GROUP Lasertube equipment for 3D laser cutting of large diameter tubes and structural beams in steel, aluminum or brass. LT14 / LT24 is the right technology for H and IPE laser cutting, but also for the production of sections for agricultural and industrial vehicles. LT14 - Large size laser cutter for large diameters •process tubes up to ∅ 355 mm (14”) •bar weight up to 100 kg/m (67 lb/ft) •automatic handling system loads and unloads tubes up to 15,5 m (50’) in length •CO2 laser source up to 3.5 kW •3D cutting •processes tubes, open sections (angles, channels, columns, flats etc.) and special profiles •cuttable materials: mild steel, stainless steel, aluminium LT24 - The right equipment for heavy fabrication •machinable sections up to ∅ 610 mm (24”) •bar weight up to 300 kg/m (200 lb/ft) •automatic handling system loads and unloads tubes or beams up to 18 m (60’) in length •CO2 laser source up to 3.5 kW •3D cutting •processes open sections (angles, channels, columns, flats etc.) and structural beams •cuttable materials: mild steel, stainless steel, aluminium Three chucks working together The position of the three chucks during laser cutting is automatically managed to minimize bar movements, while the lighter and faster cutting head moves along the tube. This means more accurate, faster cuts and faster part processing.
