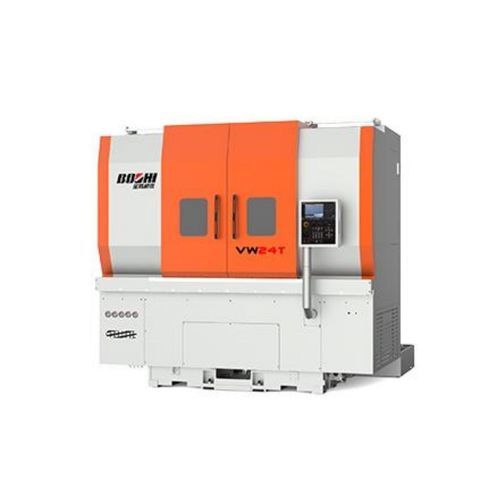

CNC lathe VW24Tvertical2-axisA2-11
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis
- Spindle mount
- A2-11
- Applications
- for automotive applications
- Diameter
700 mm, 870 mm
(27.56 in, 34.25 in)- Maximum part length
450 mm
(18 in)- Axe X
520 mm
(20 in)- Axe Z
550 mm
(22 in)- Nominal power
45 kW, 55 kW
(61.2 hp, 74.8 hp)- Overall lenght
3,440 mm
(135 in)- Overall width
4,700 mm
(185 in)- Overall height
3,400 mm
(134 in)- Weight
16,000 kg, 17,000 kg
(35,274 lb, 37,479 lb)
Description
VW24T is a CNC vertical twin-tool holder lathe with wide rectangular hardened guideway, which is a highly efficient machine tool developed for automotive wheel hub machining. The machine has single spindle and double tool holders, controlled by dual-channel CNC system, two six-station servo tool holders can be independently set up and feed each other, and the two tool holders can simultaneously process inner and outer rings of wheel hubs, which is flexible and versatile; one set of control controls two sets of feeds, which has high machining efficiency and covers a small area.
