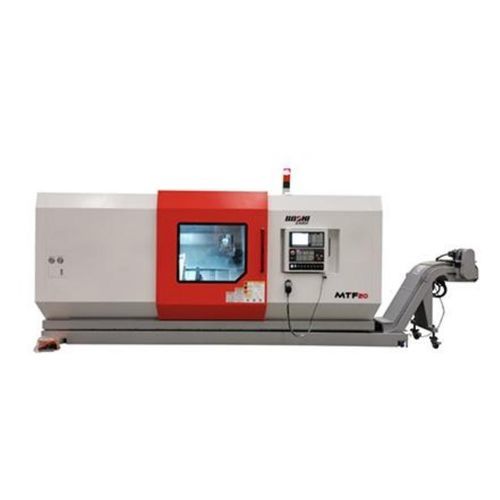

CNC lathe MTF20horizontal2-axis2-spindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Number of spindles
- 2-spindle
- Spindle mount
- A2-6
- Turret
- double-turret
- Applications
- for automotive applications, for oil industry applications
- Diameter
250 mm
(9.84 in)- Spindle speed
3,000 rpm
(18,849.556 rad.min-1)- Maximum part length
1,100 mm
(43 in)- Maximum cutting length
1,000 mm
(39 in)- Bar capacity
65 mm
(3 in)- Axe X
210 mm
(8 in)- Axe Z
1,050 mm
(41 in)- Rapids on X
24 m/min
- Rapids on Z
30 m/min
- Nominal power
22 kW
(29.9 hp)- Overall lenght
5,600 mm
(220 in)- Overall width
2,452 mm
(97 in)- Overall height
2,260 mm
(89 in)- Weight
9,200 kg
(20,283 lb)
Description
MTF20 dual spindle dual tool holder CNC lathe, the machine tool adopts dual spindle, dual tool holders in the column layout, wide number of CNC control system, can realize dual spindle, dual tool holders at the same time turning processing. The Z feed of the machine tool can complete the two-way clamping of the workpiece, realize the positive and negative machining of the workpiece, and complete all the turning processing of the workpiece under one clamping, which can be widely applied to the processing requirements of new energy, automobile, light industry and other industries.
