AC gear-motor Model 1665

three-phasehelical gearparallel-shaft

Overview

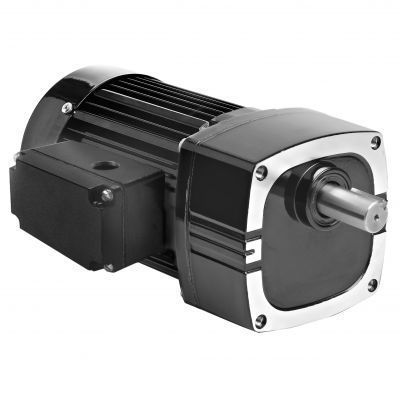

Model 1665 from the Metric 42R-E Series parallel shaft AC gearmotor. Three-phase, inverter-compatible metric gearmotor with helical gearing and permanently lubricated gearing designed for quiet operation and long life.

Specifications (from product table)
Speed (rpm): 140
Rated Torque (Nm): 5.6
Rated Torque (lb-in): 50
Power (Watts): 140
Power (HP): 1/5
Volts: 230 / 400
Hz: 50
Phases: 3
Amps: 1.1 / 0.61
Gear Ratio: 10
Radial Load (N): 1300
Radial Load (lbs): 300
Length XH (mm): 231
Length XH (inch): 9.08
Weight (kg): 6.8
Weight (lbs): 15.3
Connection Diagram: 07410279
Capacitor Part Number: N/A
Product Type: 42R5BFPP-E2
HPDecimal: 0.2

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Unvented gearhousing.
• Industrial lip type seals on motor and output shafts.
• Needle bearings throughout for increased radial load capacity and long life.
• Permanently lubricated gearing utilizing semi-fluid grease for long life.
• Selective hardened helical gearing for quietness and high output to size ratio.

Available Documents

• CAD Drawings: PDF, DWG, STEP available for Model 1665 (download options shown on product page).
• Wiring Diagram: PDF (diagram reference 07410279).
• Safety Data Sheets: Imperial oil safety sheet available.

Optional Accessories

• L-Bracket Kit for E, F and FX gearmotors [model 0969]
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984]
• L-Bracket Mounting Kit for metric type E/F gearmotors [model 1969]
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 1984]
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors [model 0986]

Notes
Three-phase AC gearmotor shown for 230/400 V, 50 Hz operation. Web price displayed in U.S. dollars on site; availability and pricing subject to change.

Caractéristiques / spécifications techniques

• Model: 1665
• Series: Metric 42R-E
• Speed: 140 rpm
• Rated Torque: 5.6 Nm (50 lb-in)
• Power: 140 W (0.2 HP / 1/5 HP)
• Voltage: 230 / 400 V
• Frequency: 50 Hz
• Phases: 3
• Current: 1.1 / 0.61 A
• Gear Ratio: 10
• Radial Load Capacity: 1300 N (300 lbs)
• Length XH: 231 mm (9.08 in)
• Weight: 6.8 kg (15.3 lbs)
• Connection Diagram Reference: 07410279
• Product Type Code: 42R5BFPP-E2
