AC gear-motor Model 1633

three-phasewormright angle

Product

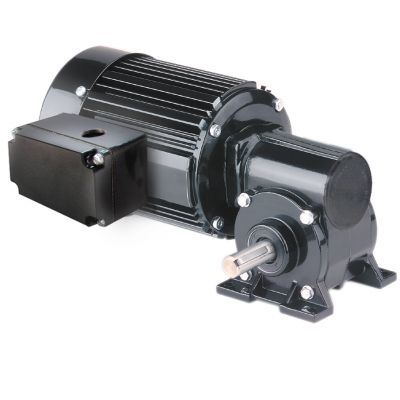

Metric 42R-5N Series AC right-angle gearmotor, Model 1633. Designed for industrial applications requiring compact right-angle drive solutions; fan-cooled motor with permanently lubricated gearing and industrial shaft seals for continuous operation.

Available CAD & Drawing Files
CAD drawings available for this model: PDF, DWG and STEP (model 1633).

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Totally enclosed IP-20 rating.
• Fan cooled for high output power.
• Class "B" insulation system operated within Class "A" limits to prolong winding and lubricant life.
• Aluminum center ring and endshields for high thermal efficiency and reduced weight.
• Unvented gearhousing.
• Industrial lip-type seals on motor and output shafts.
• Needle bearings throughout for increased radial load capacity and long life.
• Permanently lubricated gearing using oil for extended service life.
• Bronze worm gear for high shock-load capability.
• Hardened and ground worm for strength and long life.

Optional Accessories

• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984).
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984).
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986).

Technical specifications

• Speed (rpm): 47
• Rated Torque (Nm): 12.3
• Rated Torque (lb-in): 109
• Power (Watts): 140
• Power (HP): 1/5
• Volts: 230/400
• Hz: 50
• Phases: 3
• Amps: 1.1 / 0.61
• Gear Ratio: 30
• Radial Load (N): 800
• Radial Load (lbs): 180
• Length XH (mm): 260
• Length XH (inch): 10.25
• Weight (kg): 7.3
• Weight (lbs): 16.3
• Connection Diagram: 07410279
• Capacitor Part Number: N/A
• Product Type: 42R5BFPP-5N
• HPDecimal: 0.2
