Bi-metal thermostat 6193x0401

NOpanel-mountroom

Short description

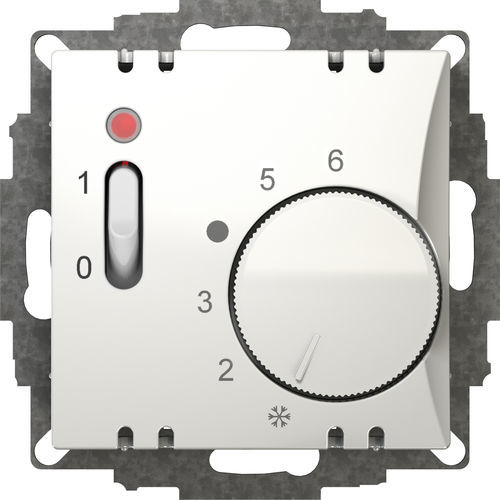

Color: White (similar to RAL 9010). Room thermostat with normally-open contact, switch and indicator lamp.

Functions and operation

• Rotary knob with indexing scale (1–6)
• Control range: +5 °C to +30 °C
• Indicator lamp for switch status indication

Technical features

• Sensing element: bimetal type 1C
• Switching capacity: max. 10(4) A
• Standard cover: 55 × 55 mm
• Installation: for flush-mounted boxes up to Ø 65 mm
• Connection: plug-in terminals
• Color (alternative designation): polar white, similar to RAL 9010

Safety and application notes
Work on the 230 V mains must only be performed by a qualified electrician in compliance with applicable regulations (e.g. IEC or VDE). Opening the device or any other intervention voids the warranty. This product may only be opened and installed by a qualified electrician as shown in the wiring diagram on the device or in the manual. Applicable safety regulations must be observed. To achieve the requirements of protection class II, the corresponding installation measures must be implemented. The device is intended for installation in dry, enclosed rooms. After commissioning the bimetal sensor requires time to stabilise; sufficient accuracy of the switching point is achieved after approx. 1–2 hours of operation.

Specifications / technical data

• Product type: Room thermostat, normally-open contact with switch and indicator lamp
• Model designation: Room thermostat (normally open) with switch
• Color: White / polar white (similar to RAL 9010)
• Control element: rotary knob with indexing scale (1–6)
• Control range: +5 °C to +30 °C
• Sensing element: bimetal type 1C
• Switching capacity: max. 10(4) A
• Standard cover: 55 × 55 mm
• Installation: for flush-mounted boxes up to Ø 65 mm
• Connection type: plug-in terminals
• Article number (manufacturer / shop): 6193x0401
• GTIN / EAN: 4012096011422
• Note: Installation by a qualified electrician only
