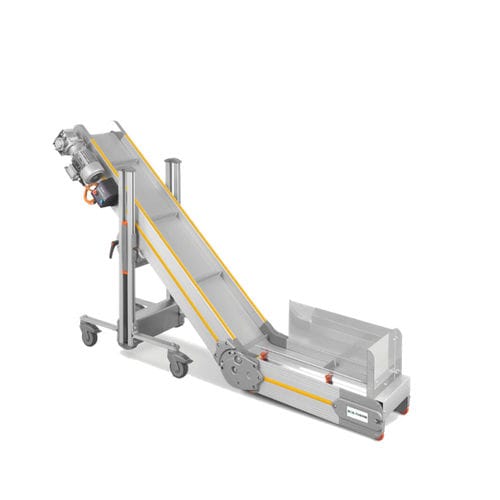

Continuous conveyor belt SMART CP seriespolyurethanesmoothindustrial
Add to favorites
Compare this product
Characteristics
- Type
- continuous
- Material
- polyurethane
- Pattern
- smooth
- Sector
- industrial
- Tolerance
- oil-resistant, heat-resistant
- Width
Max.: 355 mm
(13.98 in)Min.: 155 mm
(6.1 in)- Length
Max.: 1,800 mm
(70.9 in)Min.: 1,500 mm
(59.1 in)- Thickness
1.7 mm
(0.067 in)
Description
DECEMBER 2019Boe-Therm A/S ● Industrivænget 1 ● DK 5610 Assens ● Tel.: +45 6471 2375www.boe-therm.dk ● info@boe-therm.dkTECHNICAL FEATURES•Structure made of aluminiumanodizedprofile height 120 mmwith NON-REMOVABLEside panel h= 35 mm•Belt: antistatic, cut-proof and oil-proof,withsmooth grey Polyurethane covering.Slats H=30mm / Pitch400mm. Belt thickness 1,7 mm •Temperature resistance: Continuous: from -10°C to +90°CMomentary:from -30°C to+110°C •Standard transmission group composed ofthree-phase motor, worm reduction unit with lubrication for life•Fixed standard speed ~3 m/min•Start/Stopswitch with 5 m cable •Voltage: 400V / 3-fase / 50Hz
