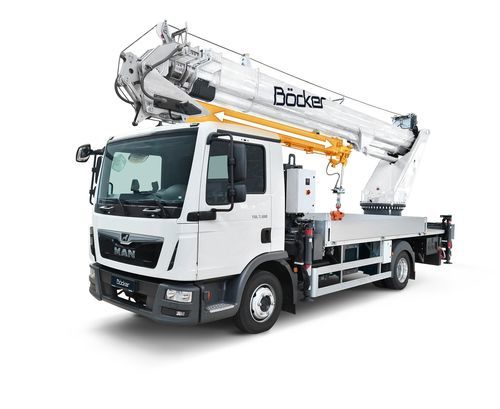

Truck-mounted crane AK 37 X

telescopicfor constructionlifting

Product description
The AK 37 X truck crane is a compact, high‑maneuverability solution in the 7.49 t truck class. Fitted with a two-section, fully hydraulic telescopic jib controlled by a colour radio remote, it can exploit a boom length of up to 37 m (option) and deliver precise handling in confined urban and construction-site environments. The AK 37 X handles standard payloads up to 1,500 kg (option 3,000 kg) and can operate with commonly used loads of 250 kg at ranges up to 27–28 m. The AK 37e X variant adds a removable battery drive and 230 V charging for quiet electric operation, while the AK 37 X is also available with PTO or PTO + removable 400 V electric motor.

Key features

• Two-section fully hydraulic telescopic jib
• Colour radio remote control for intuitive operation
• Drive options: PTO / PTO + removable 400 V motor / removable battery 230 V (AK 37e X) / hybrid variants
• Compact design with very small slewing radius
• Optional personnel platform compatibility (up to 250 kg)

Your benefits

• 2-section hydraulically operated jib — Fast extension and telescoping under load via radio remote enable optimal use of available outreach in restricted spaces and direct material placement into buildings.
• Very small slewing radius — No additional counterweights required on the turret, saving space and reducing setup time; ideal for roadside use and tight sites.
• No forward overhang at mast tip — Mast aligns with the cab in transport position for compact transport dimensions and improved manoeuvrability on public roads.
• 230 V charging technology with removable battery — Allows operation from a standard socket; quiet electric mode suited to residential and city-centre sites.
• Optimized and safer crane assembly — Individually extendable hydraulic outriggers and intelligent control monitor outrigger positions and automatically unlock the maximum safe working area.
• Simple and intuitive operation — Radio remote with colour display for precise control; optional camera systems improve visibility.

Technical specifications

• Model: AK 37 X / AK 37e X
• Max. payload (kg): 1,500 (opt. 3,000)
• Max. boom length (m): 35.00 (opt. 37.00)
• Working height up to jib (m): 23.60
• Extendable jib (m): 4.87 / 7.96 / 11.06 (opt. 13.06)
• Jib capacity (kg): 1,500 / 800 / 500 / (250)
• Telescopic arm angle (°): 85
• Swivel range (°): +/- 315
• Boom angle (°): 162
• Hook speed (m/min): 45
• Outriggers L x W min. (m): 5.38 x 2.36
• Max. outrigger footprint, single-sided support (m): 3.95
• Max. outrigger footprint with outriggers on both sides (m): 5.55
• Vehicle height (m): 3.80
• Vehicle width (m): 2.55
• Vehicle length (m): 8.35
• Truck wheelbase (m): AK37: MAN 3.9; DB 4.2 — AK37e: MAN/DB 4.2
• Truck gross vehicle weight (t): 7.49 / 8.6 (8.8)
• Range in crane operation (m): 250 kg: 27.00 (opt. 28.00); 450 kg: 21.00; 1,000 kg: 13.50; 1,500 kg: 10.00; 2,000 kg: 8.00; 3,000 kg: 5.70
• Range / working height in platform operation (m) with rotating basket PK 250-D: 20.80 / 33.20
• Range / working height in platform operation with swing basket (m): 21.70 / 33.20 at 200 kg
• Drive: PTO / PTO auxiliary drive / 400 V hybrid / 230 V hybrid with battery / eReadyKit (AK 37e X = removable battery drive and 230 V charging)
• Notes: Figures are preliminary and subject to technical changes; specified values are maximum values.
