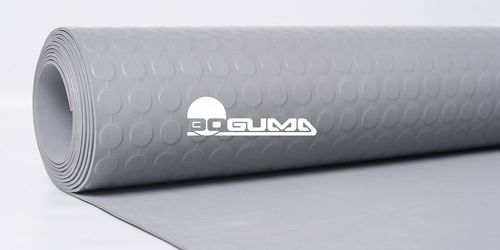

Styrene butadiene rubber (SBR) floor covering S8

rubberrollcoin

Overview
Rubber flooring for interior surfaces with coin-type pattern S8. Available in SBR-C (SBR-COLOR) formulation in six standard colors. Standard thickness 4 mm (other thicknesses available up to 10 mm). Typical basis weight from approx. 5.7 kg/m2 for 4 mm variants; configurable in length, width and thickness.

Colors

• grey
• dark grey
• blue
• green
• red
• yellow

Key product parameters

• Product family / Model: S8
• Pattern: coin pattern (S8)
• Rubber type: SBR-C (SBR - color)
• Environment / Application: interior surfaces (rubber flooring)
• Hardness: 80 ± 5 (Shore A)
• Thickness range (available): 4 — 10 mm (standard thickness 4 mm)
• Basis weight (range): approx. 5.7 — 16.1 kg/m2 depending on thickness
• Standard roll length: 10 m; standard width: 1230 mm

Variants (table)
Id | Item number | Old number | Group | Rubber | Pattern | Color | Length (m) | Width (mm) | Thickness (mm) | Thickness tolerance | Weight (kg/m2)
1268 | DD_80_01_S8_1_04-0 | DD S8 Gray | DD | SBR-C | S8 | grey | 10 | 1230 | 4 | (+/- 0,3 mm) | 5.9
1269 | DD_80_03_S8_1_04-0 | DD S8 | DD | SBR-C | S8 | blue | 10 | 1230 | 4 | (+/- 0,3 mm) | 5.9
1270 | DD_80_04_S8_1_04-0 | DD S8 | DD | SBR-C | S8 | green | 10 | 1230 | 4 | (+/- 0,3 mm) | 5.9
1271 | DD_80_08_S8_1_04-0 | DD S8 | DD | SBR-C | S8 | dark grey | 10 | 1230 | 4 | (+/- 0,3 mm) | 5.9
1272 | DD_80_09_S8_1_04-0 | DD S8 | DD | SBR-C | S8 | yellow | 10 | 1230 | 4 | (+/- 0,3 mm) | 5.7
1356 | DD_80_04_S8_1_04-0 | DD S8 | DD | SBR-C | S8 | red | 10 | 1230 | 4 | (+/- 0,3 mm) | 5.9
1329 | DD_80_01_S8_1_05-0 | DD S8 | DD | SBR-C | S8 | grey | 10 | 1230 | 5 | (+/- 0,5 mm) | 7.8
1330 | DD_80_01_S8_1_06-0 | DD S8 | DD | SBR-C | S8 | grey | 10 | 1230 | 6 | (+/- 0,5 mm) | 9.3
1331 | DD_80_01_S8_1_08-0 | DD S8 | DD | SBR-C | S8 | grey | 10 | 1230 | 8 | (+/- 0,6 mm) | 12.5
1332 | DD_80_01_S8_1_10-0 | DD S8 | DD | SBR-C | S8 | grey | 10 | 1230 | 10 | (+/- 0,6 mm) | 16.1
1333 | DD_80_03_S8_1_05-0 | DD S8 | DD | SBR-C | S8 | blue | 10 | 1230 | 5 | (+/- 0,5 mm) | 7.8
1334 | DD_80_03_S8_1_06-0 | DD S8 | DD | SBR-C | S8 | blue | 10 | 1230 | 6 | (+/- 0,5 mm) | 9.3
1335 | DD_80_03_S8_1_08-0 | DD S8 | DD | SBR-C | S8 | blue | 10 | 1230 | 8 | (+/- 0,6 mm) | 12.5
1336 | DD_80_03_S8_1_10-0 | DD S8 | DD | SBR-C | S8 | blue | 10 | 1230 | 10 | (+/- 0,6 mm) | 16.1
1337 | DD_80_04_S8_1_05-0 | DD S8 | DD | SBR-C | S8 | green | 10 | 1230 | 5 | (+/- 0,5 mm) | 7.8
1338 | DD_80_04_S8_1_06-0 | DD S8 | DD | SBR-C | S8 | green | 10 | 1230 | 6 | (+/- 0,5 mm) | 9.1
1339 | DD_80_04_S8_1_08-0 | DD S8 | DD | SBR-C | S8 | green | 10 | 1230 | 8 | (+/- 0,6 mm) | 12.0
1340 | DD_80_04_S8_1_10-0 | DD S8 | DD | SBR-C | S8 | green | 10 | 1230 | 10 | (+/- 0,6 mm) | 15.0
1341 | DD_80_08_S8_1_05-0 | DD S8 | DD | SBR-C | S8 | dark grey | 10 | 1230 | 5 | (+/- 0,5 mm) | 7.5
1342 | DD_80_08_S8_1_06-0 | DD S8 | DD | SBR-C | S8 | dark grey | 10 | 1230 | 6 | (+/- 0,5 mm) | 9.1
1343 | DD_80_08_S8_1_08-0 | DD S8 | DD | SBR-C | S8 | dark grey | 10 | 1230 | 8 | (+/- 0,6 mm) | 12.0
1344 | DD_80_08_S8_1_10-0 | DD S8 | DD | SBR-C | S8 | dark grey | 10 | 1230 | 10 | (+/- 0,6 mm) | 15.0

Technical specifications

• Profile: coin pattern (S8)
• Material: SBR (SBR-C variant)
• Intended environment: interior surfaces
• Colors: grey, dark grey, blue, green, red, yellow
• Standard width: 1230 mm
• Standard roll length: 10 m
• Available thicknesses: 4, 5, 6, 8, 10 mm
• Hardness: 80 ± 5 (Shore A)
• Basis weight: approx. 5.7 kg/m2 (4 mm) up to 16.1 kg/m2 (10 mm)
