Belt conveyor CT-2600
lineartransportwork

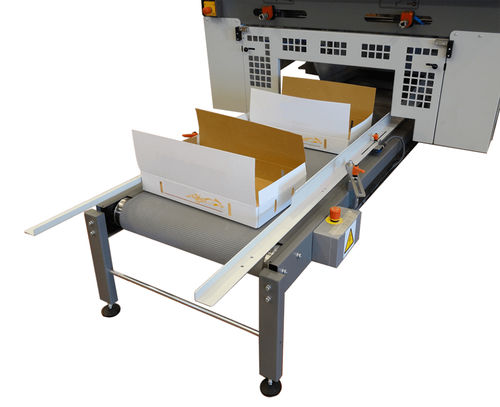

Belt conveyor - CT-2600 - Boix Group - Your Box Forming Partner - linear / transport / work

Belt conveyor - CT-2600 - Boix Group - Your Box Forming Partner - linear / transport / work - image - 2

Belt conveyor - CT-2600 - Boix Group - Your Box Forming Partner - linear / transport / work - image - 3

Belt conveyor - CT-2600 - Boix Group - Your Box Forming Partner - linear / transport / work - image - 4

Belt conveyor - CT-2600 - Boix Group - Your Box Forming Partner - linear / transport / work - image - 5

Belt conveyor - CT-2600 - Boix Group - Your Box Forming Partner - linear / transport / work - image - 6

Add to favorites

Compare this product

Characteristics

Technology: belt
Form: linear
Function: transport, work
Drive mechanism: electric drive
Transported product: for boxes
Speed: 0.7 m/s, 0.86 m/s
(2.3 ft/s, 2.82 ft/s)
Effective width: 200 mm, 600 mm
(8 in, 24 in)
Length: 2,600 mm
(102.36 in)

Description

In Boix Machinery we want to get the most out of your machine, so we’ve designed a range of accessories tailored to your needs, such as stackers and conveyors that increase machine versatility and promote the work optimization. The main features of this conveyor are: Adjustable height. Stop button integrated into the belt frame. Length 2600 mm. • OPERATION: Electrical • TOTAL POWER: 0,33 Kw • NET WEIGHT: 125 Kg • ELECTRICAL SUPPLY: 380/220 V (3F + PE) – 50/60 Hz • INTRODUCTION SYSTEM: By conveyor belt • CHANGE OF SIZE: By clamps (if it has linear guides) • CHANGE OF SIZE (IN TIME): 5 min (if it has linear guides) • CONTROL: Centralized on machine screen • FRAME: 2 and 3 mm steel plate • MACHINE DIMENSIONS: L:2850 mm.; A:950 mm.; H:565 mm
