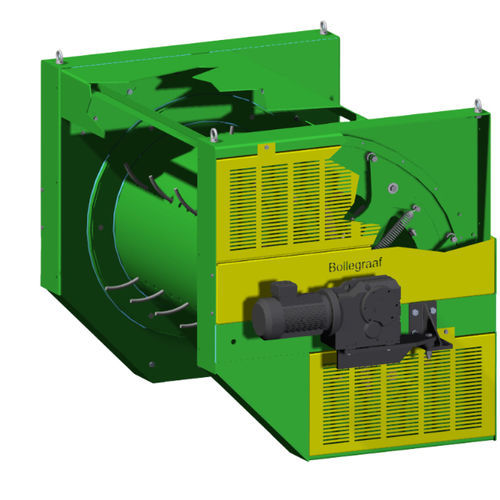

Plastic recycling sorting machine BRS

for recyclingindustrialautomated

Overview
The BRS Filmgrabber separates films and foils from a recyclables stream at the start of the separation process. It removes more than 70% of the film fraction larger than A4, improving downstream sorting efficiency.

How it works
The unit uses a rotating drum driven by a variable-speed motor with inward/outward retractable pins. Recyclables are lifted by an air flow so the pins inside the drum can pick up and extract films and foils.

Self-cleaning
The BRS Filmgrabber includes a self-cleaning mechanism: retractable pins in the drum shed collected material to reduce manual cleaning interventions.

Air handling
The machine comprises an aeraulic suction system and an integrated dust collector with a capacity of 20,000 m³/h to manage airflow and dust extraction.

Preferred positioning
Install upstream of pre-sorting to facilitate manual cabin operators and optical sorters and to reduce contamination of downstream fractions.

Other special features

• Construction: components and materials selected for wear resistance and long service life
• Design for continuous operation with minimized downtime
• Low maintenance concept supported by the self-cleaning pin system

Features / technical specifications

• Removal performance: >70% for film fraction larger than A4
• Rotating drum driven by a variable-speed motor
• Inward/outward moving retractable pins for film pickup
• Air-assisted feed: recyclables lifted by air to enable pin pickup
• Self-cleaning system via retractable drum pins
• Aeraulic suction system / integrated dust collector capacity: 20,000 m³/h
• Recommended position: upstream of pre-sorting
• Applications: removal of shopping bags, packaging films and similar thin-film materials
