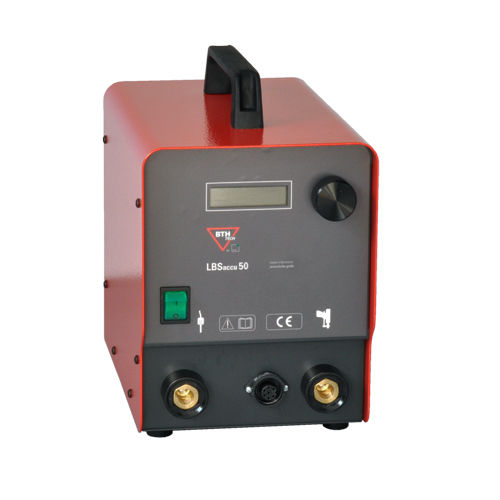

The battery powered stud welding unit LBSaccu 50 is designed for capacitor discharge stud welding with up to 200V charging voltage. The unit welds steel and stainless steel studs up to M6 resp. Ø6 reliable in process.
The battery operation enables mobile use without electrical power supply. The integrated battery offers a very high capacity. With a life period of approx. 1000 charging cycles it is extremely long-lasting. Alternatively (e.g. when the battery is empty), the unit can be operated at every power socket.
The LBSaccu 75 is very light and very compact (195 x 302 x 270 mm). It convinces through easy operation and high welding quality. Through the electronically clocked inverter charging board short charging times and thus quick welding sequences are accomplished. The robust construction ensures high reliability and high power-on time. All functions are indicated by the high-grade LCD display. The charging voltage is continuously adjustable by the rotary knob on the front.
lightweight
low weight for high mobility
small and compact
dimensions: 195 x 302 x 270 mm
LCD-Display
easy to read
display of adjusted charging voltage
display of welds performed (welding counter resettable)
display of welds still possible
charging state indicator (colour changing of the display)
very easy operation
charging voltage continuously adjustable
one-button operation by robust rotating pressure switch
applicable with stud welding gun PKM-1b
for welding threaded studs, non-threaded studs, internally threaded studs, earth plugs and insulation nails
welding material: steel, stainless steel
