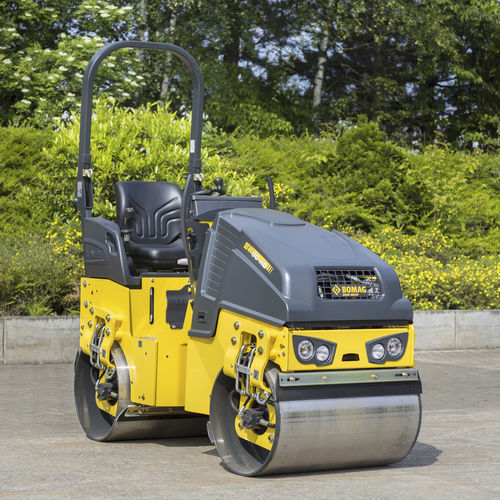

Tandem road roller BW 90 AD-5

vibratingarticulated

Overview
Light articulated tandem roller designed for soil and asphalt compaction on small to medium projects. Suitable for footpaths, repair and finishing work; compact design provides good visibility and driving comfort. Equipped with hydrostatic travel and vibration drive, ECONOMIZER compaction feedback and optional BOMAG telematics.

Product highlights

• Spacious operator platform with compact steering layout and intuitive controls for clear drum-edge visibility.
• Maintenance-free articulated joint and easy access to engine, electrics and water pump for fast service.
• ECONOMIZER shows compaction degree on display to avoid unnecessary passes and save operational costs.
• Intelligent Fleet Management / BOMAG TELEMATIC for machine monitoring and uptime optimisation.
• Individual vibration control with Intelligent Vibration Control (IVC) and multi-function travel lever.
• Pressure sprinkler system with interval switch and wind-protected nozzles for even drum wetting.

Applications
Asphalt compaction to increase load-bearing capacity and wear resistance; new construction and repair work on medium to small sites; landscaping and pedestrian areas. Models with open-sided drums available for work with lateral restrictions (e.g. BW 90 SC / BW 100 SC).

Standards / standard equipment

• Hydrostatic travel and vibration drive
• Travel drive in series
• 2 spring-loaded, foldable scrapers per drum
• Pressure sprinkler system with interval switch
• Multi-function travel lever and multi-function display with hour meter
• Water level indication and Emergency STOP
• Individual vibration control; Intelligent Vibration Control (IVC)
• Integrated storage compartment, adjustable operator's seat and seat contact switch
• Vandalism protection, 12V socket, working lights front and rear, back-up alarm
• Lashing eyes (galvanized), single point lifting device, lockable composite engine hood

Options

• ROPS with seat belt / foldable ROPS
• Sun roof (foldable) with ROPS, double travel lever, seat heating
• ECONOMIZER with asphalt temperature display, temperature display
• BOMAG TELEMATIC, theft protection, indicator and hazard lights, rotary beacon
• Optional lighting on ROPS, battery disconnect switch, environmentally compliant hydraulic oil
• Special painting, edge cutter, port for hydraulic breaker, backup warning buzzer
• ECOSTOP, outside mirrors, anti-frost intake, tablet holder, JOBLINK and BOMAP accessories

Technical specifications

• Commercial designation: BW 90 AD-5
• Emission stage: Stage V / TIER4f
• Operating weight: 1,600 kg
• Working width: 900 mm
• Engine power: 15.1 kW
• Drive: Hydrostatic travel and vibration drive
• Vibration control: Variable vibration switch + Intelligent Vibration Control (IVC)
• Sprinkler: Pressure sprinkler system with interval switch and wind-protected nozzles
