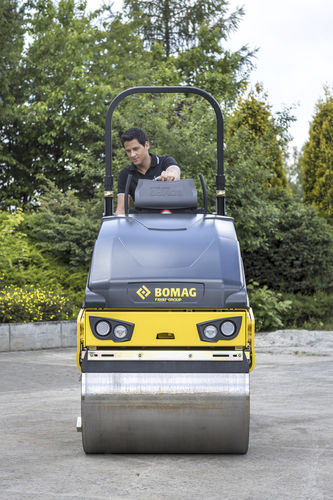

Tandem road roller BW 90 SL-5

vibratingrobustarticulated

Overview
Light articulated tandem roller for soil compaction and asphalt patching. Suited to footpaths, repair work and finishing tasks in road construction. The compact BOMAG BW 90 SL-5 is also used in landscaping and confined-site applications.

Highlights

• Robust articulated joint bolted to front and rear frames for durability and easy access in case of service or emergency.
• Operator comfort and control: spacious platform, compact steering wheel, clear dashboard with large switches, soft-responsive control lever and excellent drum-edge visibility.
• ECONOMIZER display indicates compaction level to avoid unnecessary passes and reduce time and costs.
• Separated sprinkler system with wind-protected nozzles for even drum wetting.
• EasyService concept: maintenance-free articulated joint, accessible engine bay, central electrics and water pump; hermetically sealed bearings and no grease nipples.
• Fleet management ready: BOMAG telematics options for location, usage monitoring and service scheduling.

Fields of application
Asphalt compaction for increased bearing capacity and wear resistance. New construction and repair for small to medium projects, pathways and landscaping. Versions with open-sided drums are available for restricted-side compaction.

Standards

• Hydrostatic travel and vibration drive
• Travel drive in series
• 2 spring-loaded, tiltable scrapers per drum
• Pressure sprinkler system with interval switch
• Multi-function display including operating hour meter
• Water level indicator
• Emergency STOP
• Individual vibration control
• Adjustable operator seat
• Seat contact switch
• Vandalism protection
• 12V socket
• Back-up alarm
• Galvanized lashing eyes
• Single point lifting device
• Lockable composite engine hood

Options

• ROPS with safety belt
• Foldable sun roof with ROPS
• Working lights front and rear
• Temperature display
• BOMAG telematics
• Rotary beacon
• Battery disconnect switch
• Special paint
• Outside mirrors
• Tablet holder set

Technical specifications

• Commercial designation: BW 90 SL-5
• Emission stage: Stage V / TIER4f
• Operating weight: 1350 kg
• Working width: 900 mm
• Power: 15.1 kW
• Notes: Pressure sprinkler with interval switch; hydrostatic travel and vibration drive; 2 scrapers per drum; multi-function display with hour meter; maintenance-free articulated joint (EasyService).
