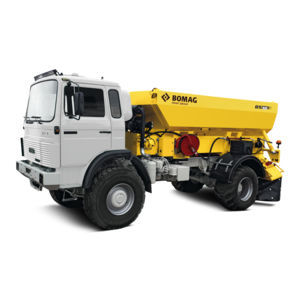

Truck-mounted binder sprayer BS 10

towable

Overview
The BS 10 binder spreader delivers reliable, precise spreading for soil improvement and consolidation. It evenly applies powdered binders such as cement, lime or fly ash to stabilise and improve the substrate. Automatic spreading quantity control ensures the pre-set dose is applied. The total spread width is mechanically adjustable in four steps from 2.4 m down to 1.0 m. The simple design with few hydraulic components supports high robustness and easy maintenance.

Key features

• Independent drive with enclosed hydraulic system for reliable operation.
• Closed tank available in 10 m³ and 16 m³ configurations.
• Homogeneous, computer-controlled dosing with variable spreading width for precise results.
• Mechanically adjustable spread width: 2.4 m to 1.0 m in four steps.
• Speed-dependent dosage with radar speed detection to ensure consistent application.

Standards

• Tyres Ø 1,650 mm x 650 mm (BS 10).
• Tyres Ø 1,450 mm x 650 mm (BS 16).
• Spring-loaded bogie axle (oscillating unit) (BS 16).
• Spring-loaded steering rod (BS 16).
• Hydraulically controlled brake.
• LED rear and brake lights; 2 LED working headlights at the rear.
• Compressed-air filling from left and right.
• Variable working width; towing coupling Rockinger Ø 40 mm (standard).
• Speed-dependent dosage and radar sensor for speed detection.

Options

• Weighing plate for dosage control; electronic weighing device.
• Towing coupling K80 (Scharmüller) or Rockinger Ø 50 mm.
• Pneumatic brake system.
• Big Bag or silo filling device from above.
• Pneumatic compressors: 1,200 l – 8 bar (cleaning) or 8,000 l – 2 bar (filling).
• High-pressure cleaner and dedicated water tank (BS 16).

Maintenance & Assistance
All service points are easily accessible. Large service doors with simple locks allow quick maintenance. BOMAG original parts and service are available to maintain machine availability and productivity.

Technical specifications

• Model: BS 10
• Function: Binder spreader for even application of powdered binders (cement, lime, fly ash or mixed binders) for soil improvement or consolidation
• Weight: 15,960 kg
• Working width: 2,400 mm (mechanically reducible in four steps down to 1,000 mm)
• Tank: Closed tank options 10 m³ / 16 m³ (model-dependent)
• Dosing: Automatic spreading quantity control; homogeneous computer-controlled dosage with variable spreading width
• Drive / hydraulics: Independent drive system with enclosed hydraulic unit
• Controls: Speed-dependent dosage with radar speed detection
• Towing coupling: Rockinger Ø 40 mm (standard); optional K80 or Rockinger Ø 50 mm
• Lighting: LED rear and brake lights; 2 LED working headlights at the rear
• Filling: Compressed-air filling from left and right; option for Big Bag / silo filling from above
• Other: Hydraulically controlled brake; tyres Ø 1,650 mm x 650 mm (BS 10)
• Notes: Further data on request. All data subject to change. Illustrations may contain optional features.
