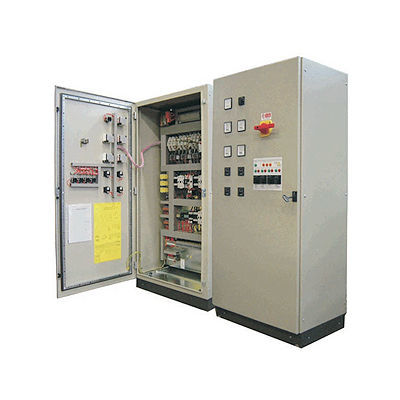

Control panel CB

Control panels for 2, 3 or 4 residual pumps up to 45 kW. Characteristics Power supply 3-400V 50Hz. 60Hz. Power supply relay in 0.37 to 4 kW panels. Micro-automaton 16 inputs / 10 outputs for panels from 5 to 45 kW. Soft starter with pump for panels from 5 to 45 kW. Externally operated general cut-off switch. General magneto-thermal and differential (300mA) switches. Magnetothermic switch per pump. Ammeter per pump visible from the outside. Voltmeter with phase selector visible from the outside. Operating hours counter visible from the outside. “Manual-Stop-Automatic” Selectors. Pilots who detect: Presence of voltage Pump operation General Judgment Acoustic alarm. Take inner Schuko. IP65 protection electrical cabinet made up of self-supporting metal modules. Boards designed for use with switches and level probes. On request: GSM communication for remote control and monitoring of parameters
