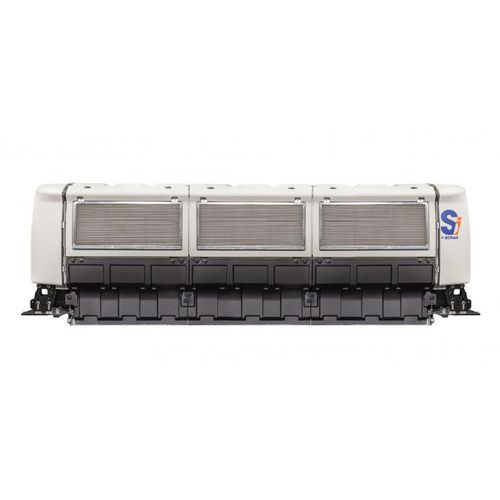

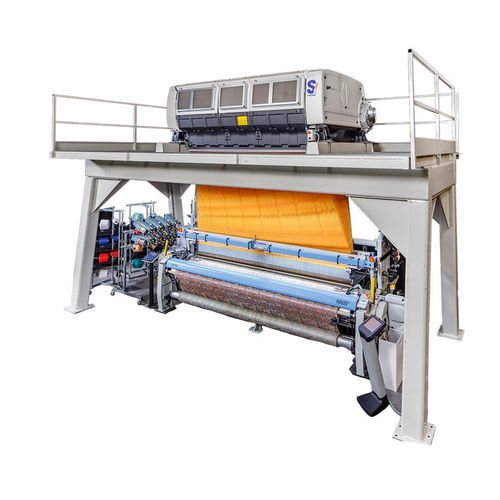

Technical fabric weaving machine Si

high-speedjacquard

The Si jacquard has been developed to meet the demand for high hook capacity at high speed. We offer the Si from 2304 to 31104 hooks in a single jacquard, ranging from only 12 knives in depth to a maximum of 36 knives. Small depth offers an optimal harness angle and lowest offset in side view when weaving with an upper beam. A multitude of models allows the opportunity of selecting the best dimensions according to your needs. Si features fulfilling customer requirements including: low power consumption, low maintenance, long lifetime, high performance, high flexibility and high speed. SELECTION MECHANISM Thanks to the development of the micro-selector, we have been able to create the fastest, lightest and most compact jacquard in its range, while maintaining the strength, stability and robustness typical of BONAS jacquards. 100% electronic micro-selection, with full control and complete diagnostics, is ideal for functioning in dusty environments, maintenance-free and temperature-independent. DRIVE MECHANISM The revolutionary compact drive mechanism, developed specifically for production at high speed with high load and maximum flexibility, contains following features: Fully balanced cam drive Fixed horizontal shaft, providing stability for high speed applications Fewer and lighter parts resulting in low friction and low vibration Low centre of gravity, reducing jacquard and gantry vibration
