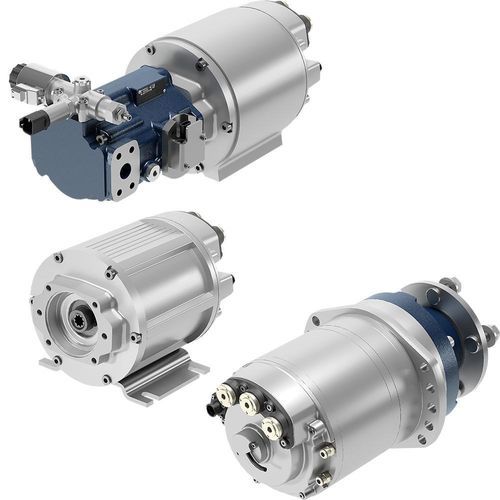

Brushless servomotor MS Series

96 V48 Vmodular

Applications
Designed for rugged environments, the MS Series low-voltage brushless motors (3.5 kW to 16 kW) target off-highway vehicles, construction machinery and industrial automation where torque density, position control and system integration are required. Typical applications include scissor lifts, telehandlers, harvesters and electric power units. The modular architecture supports integration with third-party inverters to enable flexible system design.

• Scissor lifts
• Telehandlers
• Harvesters
• Electric power units

Key Features
Rugged mechanical design with reinforced connectors and high IP protection to resist dust, moisture, vibration and wide temperature ranges. IPM (Interior Permanent Magnet) technology provides high torque density and energy efficiency. The Sincos position sensor enables high-precision, real-time position feedback for advanced control. Available in self-ventilated or liquid-cooled versions. Designed for pairing with gearboxes for traction or with hydraulic pumps for mobile equipment; supports motor and generator operation. Low-voltage compatibility (approx. 48 V–96 V) makes the series suitable for battery-powered platforms. The modular approach simplifies electromechanical integration in medium-to-high power mobile and industrial systems.

Documents
Document type | Languages | Code | Title | Revision | PDF
Brochure | EN, DE, IT | 398DEM0023A01 | Brushless Electric Motors - MS Series | 1 | (PDF available)
Catalogue - Product sheets | EN, FR, ES, PT-BR, DE, IT, RU, ZH-HANS | 398SEM003EN01 | Electric brushless Motors - MSB Series | 1 | (PDF available)
Catalogue - Product sheets | EN, FR, ES, PT-BR, DE, IT, RU, ZH-HANS | 398SEM005EN01 | Electric motorpumps - MSY Series | 1 | (PDF available)
Catalogue - Product sheets | EN, FR, ES, PT-BR, DE, IT, RU, ZH-HANS | 398SEM004EN03 | Electric Motorwheels - MSM Series | 3 | (PDF available)

Technical specifications

• Power range: 3.5 kW to 16 kW
• Technology: IPM (Interior Permanent Magnet)
• Torque: high torque density (values depend on model)
• Control: high-precision position control enabled by Sincos position sensor
• Cooling options: self-ventilated or liquid-cooled versions
• Voltage compatibility: low-voltage platforms (approx. 48 V – 96 V)
• Use cases: designed for off-highway, mobile and industrial equipment; supports motor and generator operation
• Mechanical: rugged design with reinforced connectors; high IP protection for dust, moisture, vibration and wide temperature swings
• Integration: modular design for pairing with gearboxes (traction) or hydraulic pumps; supports integration with third-party inverters
• Family variants: MSB, MSY, MSM (multiple subseries within MS Series)
