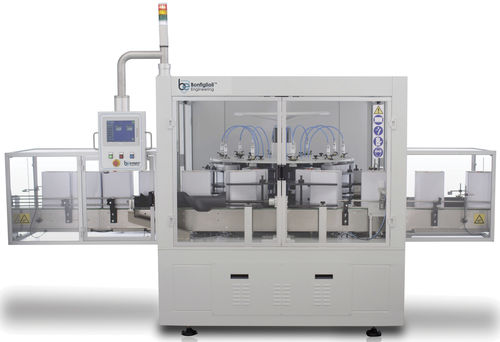

Vacuum leak tester RLD 220

pressurefor empty containersfor aerosol cans

-Zero alteration of container features -High machine adaptability & stability -Easy management -Low energy consumption -Low & Ease of maintenance: free access to all moving parts -Industry 4.0 Environment compliant Technical Features -Container Application: Pails, Composite Cans, 3 Pieces Cans, 2 Pieces Cans, Metal Canning; Plastic Bottle, General Container -Container Dimensions: From Ø52x 34 mm (h) to Ø158 x 300 mm (h) -Speed: Up to 800 cpm -Technology: CCIT -Inspection Features: Non-Invasive, Non-Destructive CCIT based on Vacuum or Pressure Decay Method -Inspection Capabilities: Microleaks detection Additional Benefits -Low investment cost -Reliability guaranteed above 99% -Enhanced easy-to-use HMI integrated functions -Quick format change -HMI real time display of statistics and raw data -Electrical Cabinet Cooling System available -Noise levels well within allowed limits Technology -Container Closure Integrity Testing is a non-destructive measurement technology based on Vacuum Decay Method or Pressure Decay Method (in case of container with small neck) performed while the package itself is held within an hermetically sealed test chamber. -Vacuum Decay test measures the loss of vacuum inside the testing chamber as a result of headspace gas leakage from the package. -Pressure Decay measurement system comprises applying a pressure differential into an airtight testing group enclosing the container. The test objective is to detect container leakages by measuring the reached pressure level as well as the pressure change over test time.
