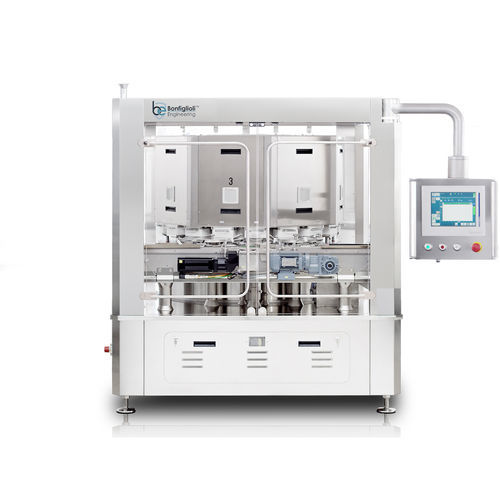

Vacuum leak tester PK-VS

pressurefor full containersautomatic

-Autotest in real time -Easy to validate -CFR 21 part 11 compliance and 4.0 full integration -Quick format changeover -Automatic Drying System, no testing chamber contamination Technical Features -Container Application: Small Volume Parenteral, Blow fill Seal (PK-VS SVP) -Products: Liquid -Container Dimensions: min: 40 x 40 x 6 mm; max: 150 x 80 x 15 mm -Speed: Up to 220 strip/BFS or cards per minute -Technology: CCIT -Inspection Features: Non-Invasive, Non-Destructive CCIT based on Vacuum Decay Method -Inspection Capabilities: Microleaks detection Additional Benefits -Full batch control testing: fast, reliable and repeatable -Testing of all nominal production line speed -MES (Manufacturing Execution System connection) allows remote machine data exchange & download -Statistical Process Control reduces deviations for a better yield control -Real time display of testing cycle diagrams, statistical raw data -Easy, quick and safe remote access -AHE (Automatic Head Exclusion) -Easy cleaning Technology -Container Closure Integrity Testing is a non-destructive measurement technology based on Vacuum Decay Method. -Measurement system comprises applying a pressure differential into an airtight testing group enclosing the container. -The test objective is to detect container leakages by measuring the reached vacuum level as well as the vacuum change over test time. Quality Assurance -Equipment test method refers to: -Approved industry standard “ASTM F2338-09”: “Standard Test Method for Non-Destructive Detection of Leaks in Packages”
