Right angle gear-motor A series
asynchronousbevelhelical gear

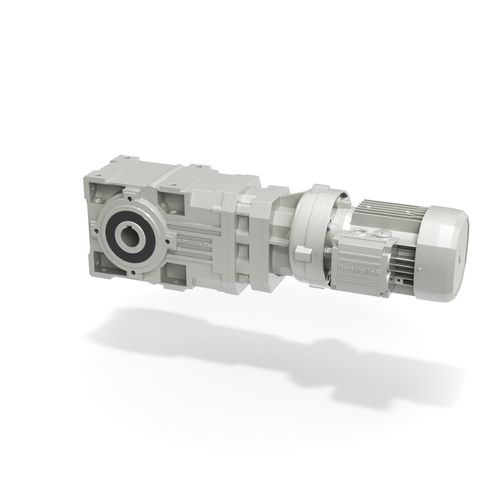

Right angle gear-motor - A series - Bonfiglioli - asynchronous / bevel / helical gear
Right angle gear-motor - A series - Bonfiglioli - asynchronous / bevel / helical gear
Add to favorites
Compare this product

Characteristics

Motor type
asynchronous
Type
bevel, helical gear
Shaft orientation
right angle
Shaft configuration
hollow-shaft
Power
50 W...100 W, 100 W...500 W, 10 W...50 W, 0 W...10 W, 500 W...1000 W, 1 kW...2 kW, 2 kW...5 kW, 5 kW...10 kW, 20 kW...50 kW, 10 kW...20 kW, 50 kW...100 kW
Torque
100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm, > 10 kNm, 5 - 10 kNm
Other characteristics
compact
Gear ratio

Min.: 4.9 unit

Max.: 1,715 unit

Description

The A Series combines high efficiency and reliability, low maintenance costs and a wide torque range. The right angle layout between INPUT and OUTPUT makes the A Series particularly compact. The gear set combination makes this right-angle product the most efficient and durable in Bonfiglioli's light- and medium-duty portfolio. The A Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (BN-BE-BX/M-ME-MX), servomotors (BMD) and reluctance motors (BSR) can be coupled with the A Series. Key features Right-angle input-output Compact motor coupling Forced gears-shafts coupling Servomotor coupling Wide ratio range (4 stages) Atex - gearbox for explosive environments 2G/2D Planetary 300 Series combined version
